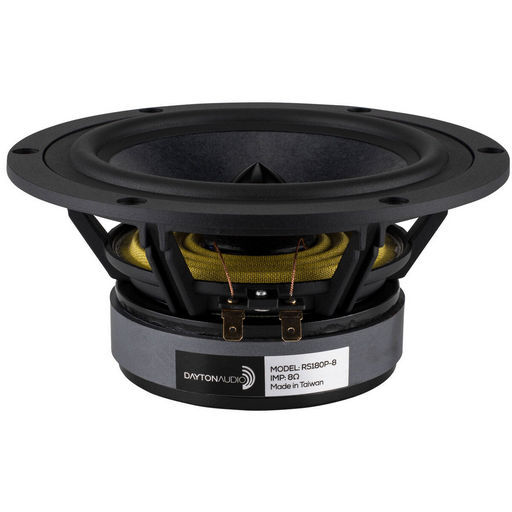

This is a 7 REFERENCE SERIES PAPER WOOFER of brand Dayton Audio.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 7 REFERENCE SERIES PAPER WOOFER
Notes DAYTON AUDIO The 7 Reference Series Paper driver uses a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibres to create an advanced non-woven fibre composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.Similar cosmetics and design features as original ReferenceSeries with low distortion motor, 6­hole cast frame, rubber surround, and solid aluminium phase plugPerfect as a woofer, midwoofer, or dedicated midrange driverThree part paper composite diaphragm featuring paper,Kevlar®, and glass fibres6 mm of Xmax and 88.2 dB sensitivity
Description7' Reference Paper Woofer 8 Ohm
TypeWoofer
Size7'
Price Typeeach
Power60W
Coil38.5mmØ
Impedance8Ω (Re 6.3Ω)
Depth76mm
Sens.89.8dB
Re6.3Ω
Qms1.49
Qes044
Qts0.34
Vas22L
Sd126.7cm²
Cms0.98mm/N
Fs45.8Hz
Mms12.4g
Zn
Le0.84mH
Diam.180.5mmØ
ManufacturerDayton Audio
Prms60W
Impedance (Ohm)8 ohm
Power (RMS)51-100 Watt
Inch7
SeriesReference Series
Hole146mmØ
QTY1
SKU NoWES_RS180P-8_2
