7 REFERENCE SERIES PAPER WOOFER
DAYTON AUDIO
SKU code: WES_RS180P-8_1

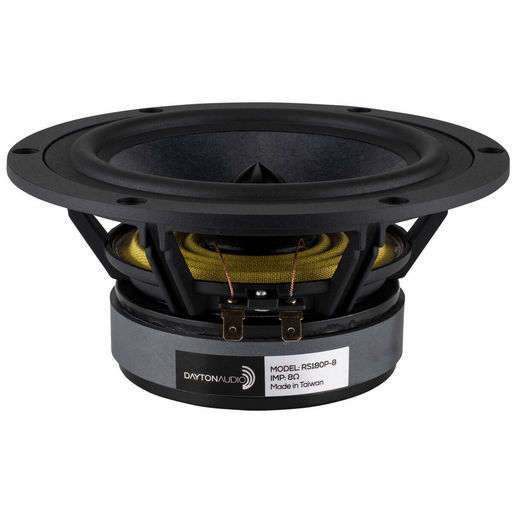

This is a 7 REFERENCE SERIES PAPER WOOFER of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 7 REFERENCE SERIES PAPER WOOFER |
| Notes | DAYTON AUDIO The 7 Reference Series Paper driver uses a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibres to create an advanced non-woven fibre composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.Similar cosmetics and design features as original ReferenceSeries with low distortion motor, 6hole cast frame, rubber surround, and solid aluminium phase plugPerfect as a woofer, midwoofer, or dedicated midrange driverThree part paper composite diaphragm featuring paper,Kevlar®, and glass fibres6 mm of Xmax and 88.2 dB sensitivity |
| Description | 7' Reference Paper Woofer 8 Ohm |
| Type | Woofer |
| Size | 7' |
| Price Type | each |
| Power | 60W |
| Coil | 38.5mmØ |
| Impedance | 8Ω (Re 6.3Ω) |
| Depth | 76mm |
| Sens. | 89.8dB |
| Re | 6.3Ω |
| Qms | 1.49 |
| Qes | 044 |
| Qts | 0.34 |
| Vas | 22L |
| Sd | 126.7cm² |
| Cms | 0.98mm/N |
| Fs | 45.8Hz |
| Mms | 12.4g |
| Zn | 8Ω |
| Le | 0.84mH |
| Diam. | 180.5mmØ |
| Manufacturer | Dayton Audio |
| Prms | 60W |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 51-100 Watt |
| Inch | 7 |
| Series | Reference Series |
| Hole | 146mmØ |
| QTY | 1 |
| SKU No | WES_RS180P-8_1 |
