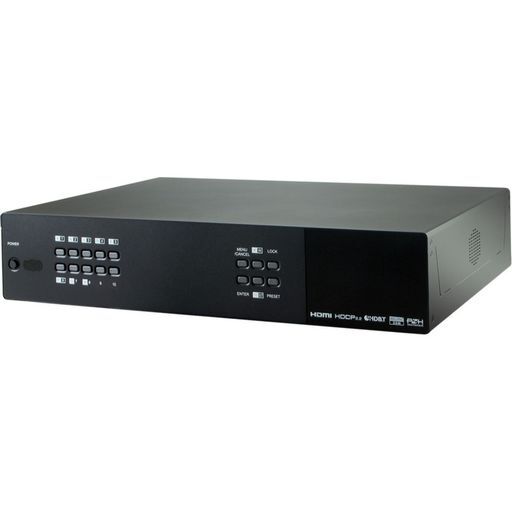

6x8 HDMI / AUDIO OVER HDBaseT MATRIX 4K60 WITH OAR
6x8 HDMI / AUDIO OVER HDBaseT MATRIX 4K60 WITH OAR
SKU code: WES_CPLUS-662CVAL_1
This is a 6x8 HDMI / AUDIO OVER HDBaseT MATRIX 4K60 WITH OAR of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 6x8 HDMI / AUDIO OVER HDBaseT MATRIX 4K60 WITH OAR |
| Notes | 6x8 HDMI / AUDIO OVER HDBaseT MATRIX 4K60 WITH OAR This 6×8 HDMI and HDBaseT Matrix supports routing and transmission of video (resolutions up to 4K@60Hz w/ HDMI 2.0 & HDCP 2.2) and audio (multi-channel digital/stereo analog) while providing flexible control via IR, RS-232, Telnet or WebGUI. As many as six UltraHD sources may be routed to any of eight destinations, six via single Cat.5e/6/7 cables (up to 60m at 1080p or up to 35m at 4K@30Hz) and two via HDMI 2.0 outputs. The two HDMI 2.0 outputs support transmission of 18Gbps UltraHD HDMI sources (up to 4K@60Hz, 4:4:4) from any HDMI input or they can mirror any of the HDBaseT outputs for local monitoring. 3D video is also supported when compatible sources and displays are connected.This product supports passing 7.1 channel LPCM digital audio as well as advanced bitstream and HD bitstream audio formats. Additionally, six analog audio outputs are available to provide stereo breakout audio from the associated HDBaseT output (LPCM 2.0 sources only). Beyond basic video routing, this product also incorporates an independent audio matrix with eight audio outputs and four audio inputs. Offering discrete audio routing, insertion and extraction, this product makes it possible to have multiple audio zones within your installation. This product supports the Optical Audio Return (OAR) channel feature, found on compatible HDBaseT receivers, allowing optical audio sources connected to those receivers to be sent back to the matrix unit.Internally generated test patterns (up to 18Gbps UHD resolutions) are provided to assist with setup, providing a simple way to verify matrix functionality. The Power over HDBaseT (PoH) function can power compatible receivers, providing greater flexibility in your installations. Control is via manual selection buttons, WebGUI, Telnet, RS-232 or IR remote.HDMI 2.0, HDCP 1.4 and HDCP 2.2 compliantRoutes 6 HDMI sources to 8 displays using 6 HDBaseT outputs and 2 independent or mirrored HDMI outputsHDBaseT feature support: High-Definition video and audio, 48v PoH (Power over HDBaseT) and control (Bi-directional IR & RS-232 pass through)Supported HDBaseT resolutions: VGA~WUXGA, 480i~1080p, 4K@24/25/30Hz (RGB, YUV 4:4:4 & YUV 4:2:2) & 4K@60Hz (YUV 4:2:0) dependent upon the output display’s EDID settingsSupports HDMI output resolutions up to 4K@60Hz (RGB/YUV 4:4:4)Supports automatic 4K@60Hz RGB/YUV 4:4:4 to YUV 4:2:0 conversion for HDBaseT outputs4K@30Hz signals can be transmitted up to 35m via Cat.5e/6 and up to 60m via Cat.6a/7Supports pass-through of all standard digital audio formats: LPCM 2.0/5.1/7.1, bitstream, and HD bitstreamSupports audio matrix functionality enabling full audio management of the system including HDBaseT audio selection, fully independent audio-only zones and HDMI audio embedding and de-embedding (LPCM only)Supports Digital to Analog Conversion (DAC) and Analog to Digital Conversion (ADC) for audio integrationSupports volume, treble, bass, and audio delay for lip-sync (up to 230ms) on analog audio outputs and mute on all outputsHDBaseT outputs with Optical Audio Return (OAR) supportAdvanced internal and external EDID management with 4 sets ofconfigurable EDID settingsInternal test pattern generation for self and sink testingCapable of generating test signals up to 4K@60HzBi-directional IR support over HDBaseTSupports supplying 48v PoH (Power over HDBaseT) to compatible receivers (with use of optional 2nd power supply)Control via front panel controls, Ethernet (Telnet & WebGUI), RS-232, and IR remote2U rack mounted design Requires HDMI over HDBaseT receivers such as: CH-1529RXPL |
| Description | 6×8 HDMI/Audio over HDBaseT Matrix with Optical Audio Return and 48V power to receivers |
| 4K | Yes |
| AVLC | No |
| Bandwidth | HDMI: 18Gbps, HDBaseT: 10.2Gbps |
| Cable Length | HDMI: 3M (4K), HDBaseT: 35M (4K@30Hz) via Cat5e/6 |
| Chassis. | Metal |
| Controller | 7×IR Extender, 7×IR Blaster, 1×RS-232 (D-sub), 1×RJ-45(control), 1×USB(service) |
| Dimensions | 438x316x88mm |
| EDID | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 6× HDMI, 4x RCA(Stereo), 1x Coax(SPDIF), 1x Toslink |
| IR | Yes |
| Max Res. | 4K@60Hz (4:4:4) for HDMI, 4K@60Hz (4:2:0) for HDBase-T |
| Output | 2x HDMI, 6x Cat5e/6/7, 12x RCA(stereo), 4x RCA(extended stereo), |
| PoE | PoH |
| Receiver | CH-1529RXPL |
| RS-232 | Yes |
| Compatible with | CH-1529RXPL |
| Manufacturer | Cypress |
| SKU No | WES_CPLUS-662CVAL_1 |
