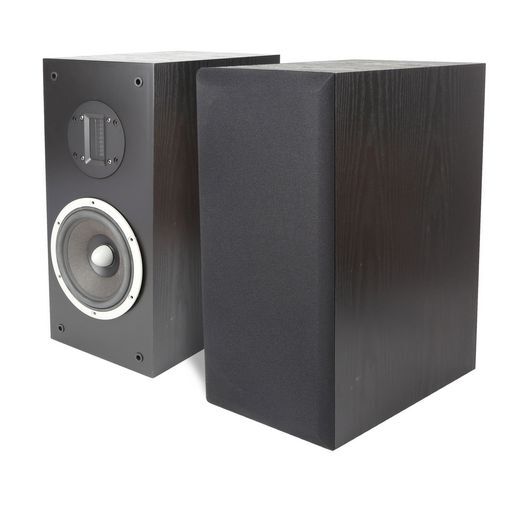

6.5” RIBBON SPEAKER KIT PAIR
RIBBON TWEETER - BLACK VENEER
SKU code: WES_HDSK360-BV_1
This is a 6.5” RIBBON SPEAKER KIT PAIR of brand Fountek.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 6.5” RIBBON SPEAKER KIT PAIR |
| Notes | RIBBON TWEETER - BLACK VENEER High quality Australian made enclosures supplied fully assembled with pre-drilled screw holes. Port installed with low turbulence bevelled edges. All internal surfaces are carpeted with acoustically damped material. Made from 18mm MDF with double thickness 36mm for the front panel. Internal bracing with edges chambered for excellent rigidity reducing cabinet resonance. MDF is covered in strong Black Vinyl veneer and includes attractive front cloth-grille on wooden routered frames fully assembled. LMS developed crossover is assembled with premium grade components. Linkwitz & Riley with Bessel-Butterworth response for linear phase. Air-core copper inductors and non-inductive resistors. SCR 400V metalised polypropylene capacitors manufactured in France. 4mm Gold-plated binding posts can be wired singular or Bi-wired. Low capacitance OFC Cable with no-soldering speaker connectors. Professional development time has produced a crossover solution that offers very low distortion, linear sound with very accurate phase response.Australian made cabinets fully assembledInternal bracing to reduce resonancesAll box surfaces have acoustic dampeningInternal edges are rounded to reduce diffractionPort is routered to reduce turbulence noiseLMS Engineered custom crossoversCopper air coils & French SCR CapacitorsExcellent phase with linear characteristicsHigh SPL Peerless HDS drivers 830883Matched JP3.0 Fountek Ribbon TweetersGold-plated 4mm Bi-Amp input terminalsAll wiring and screws includedExtremely simple screw-driver assembly Sold in stereo pairs |
| Description | 6.5' Ribbon Kit Black Vinyl Pair |
| Type | Vinyl |
| Size | 205(w)x445(h)x345(d)mm |
| Price Type | Pair |
| Power | 5 to 120W |
| Freq. | 43Hz - 40KHz |
| Colour | Black |
| QTY | 2 |
| Weight | 12Kg |
| Impedance | 8Ω (6.1Ω Re) |
| Grille | Yes |
| Sens. | 87.5dB |
| Woofer | 830883 |
| Manufacturer | Fountek |
| Suits | Bookshelf |
| Crossover | 3.2KHz 12/18dB/Oct |
| Tweeter | JP3.0 |
| Materials | MDF+Vinyl |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 30Wrms |
| Inch | 6.5' |
| SKU No | WES_HDSK360-BV_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_HDSK360-BV_1 |
| Brand | Fountek |
