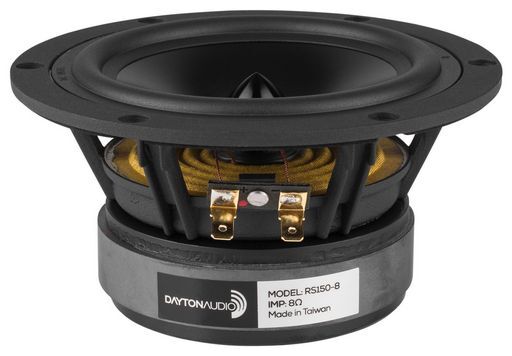

6 REFERENCE WOOFER - DAYTON AUDIO
6 REFERENCE WOOFER - DAYTON AUDIO
SKU code: WES_RS150-8_1
This is a 6 REFERENCE WOOFER - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 6 REFERENCE WOOFER - DAYTON AUDIO |
| Notes | The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilising a low-distortion motor system with two short-circuit paths and a rigid aluminium cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminium phase plug, and gold terminals.Low-distortion high-excursion motor system with two short-circuit pathsCompliant suspension and rigid black anodised aluminium cone for strong bass performance6-hole cast frame, low-loss rubber surround, and solid aluminium phase plugDesigned and engineered in the USA |
| Description | 6' REFERENCE WOOFER 8 OHM - DAYTON AUDIO |
| Cms | 1.63mm/N |
| Coil | 25mmØ |
| Depth | 70mm |
| Diam. | 152mmØ |
| Fs | 47.8Hz |
| Impedance | 8Ω (Re 6.3Ω) |
| Impedance (Ohm) | 8 ohm |
| Inch | 6 |
| Le | 0.55mH |
| Manufacturer | Dayton Audio |
| Mms | 7.4g |
| Power | 40W |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Prms | 40W |
| Qes | 0.43 |
| Qms | 1.66 |
| Qts | 0.34 |
| QTY | 1 |
| Re | 6.3Ω |
| Sd | 34cm² |
| Sens. | 88.7dB |
| Size | 6' |
| Type | Woofer |
| Vas | 16.6L |
| Zn | 8Ω |
| Series | Reference Series |
| Hole | 121.5mmØ |
| SKU No | WES_RS150-8_1 |
