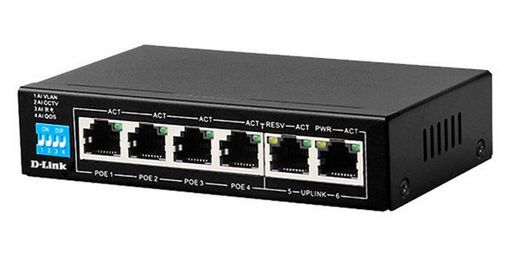

6-PORT 10/100 SWITCH WITH 4 PoE PORTS AND 2 UPLINK PORTS - D-LINK
6-PORT 10/100 SWITCH WITH 4 PoE PORTS AND 2 UPLINK PORTS
SKU code: WES_DES-F1006P-E_1
This is a 6-PORT 10/100 SWITCH WITH 4 PoE PORTS AND 2 UPLINK PORTS - D-LINK of brand D-Link.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 6-PORT 10/100 SWITCH WITH 4 PoE PORTS AND 2 UPLINK PORTS - D-LINK |
| Notes | The D-Link DGS-F1006P-E 6-Port 10/100/1000 Switch with 4 PoE Ports enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), IP cameras, and IP phones to the network. Built with home and small business users in mind, the DGSF1006P-E is compact and operates silently, making it ideal for most rooms and offices DGS-F1006P-E features four 10/100/1000 BASE-T ports that support the IEEE 802.3af and IEEE 802.3at PoE protocols, supplying up to 30 W on each PoE port up to 250m and providing a total power budget of 60W. You can connect compatible devices to the DGS-F1006P-E without using an additional power supply. This allows you to save on cabling and to install devices in locations without immediate access to power outlets. The DGS-F1006P-E features plug-and-play installation and requires no configuration. Auto MDI/MDI-X support on all ports removes the need for crossover cables when connecting to another switch or hub, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device. With wire-speed filtering and store-and-forward switching, the DGS-F1006P-E maximizes network performance while minimizing the transmission of bad network packets.4 x 10/100 Mbps Fast Ethernet PoE+ Ports 2 x 10/100 Mbps Uplink PortsPoE+ support - up to 30W per portLong Reach PoE support - up to 250mSmart Features: Extend, VLAN, QoS and PoE ResetLightning protection built-in (6kV)PoE Budget 60 WattsPlug & Play Installation |
| Description | 6-Port 10/100 switch with 4 PoE ports |
| Dimensions | 125x75x27mm |
| Hi-PoE | - |
| Manufacturer | D-Link |
| Mounting | Desktop |
| OEM | DES-F1006P-E |
| PoE | 4x PoE+ |
| PoE Power | 60W |
| PoE+ | 4 |
| RJ45 | 6x 100Mbps |
| SFP | - |
| Size | 125x75x27mm |
| Speed | 100M |
| Switching Capacity | 1.2Gbps |
| Uplink | 2x 100M |
| Series | PoE Long Reach |
| SKU No | WES_DES-F1006P-E_1 |
