This is a 6-1/2 ULTRA EFFICIENT LOW PROFILE - DAYTON AUDIO of brand Dayton Audio.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET

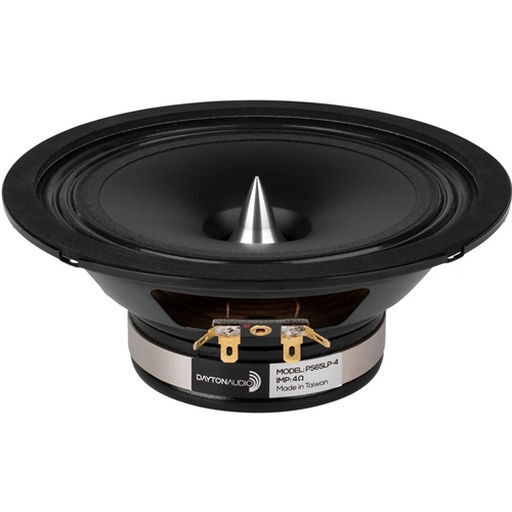

Title 6-1/2 ULTRA EFFICIENT LOW PROFILE - DAYTON AUDIO
Notes The Dayton Audio PS65LP-4 6-1/2 high efficiency full-range driver could be the ultimate upgrade for your factory stereo system. Designed to be a simple drop in replacement for your stock speakers, this drivers amazing efficiency can increase the output by up to 10 dB without adding any additional amplification. Also, this is an excellent driver for use in any high efficiency full range speaker designs. - Ultra-efficient, high SPL (99 dB @ 2.83V/1m*) high-performance driver Low-profile 2-3/8 mounting depth suitable for car doors or any shallow designs Smooth high frequency roll-off even at 75° off-axis Unique patent-pending bi-conical cone geometry provides high frequency extension and dispersion, as well as cone rigidity Highly damped polypropylene cone controls cone break-up and provides a smooth roll-off Copper cap to keep inductance under control and to extend high frequency response Powerful 1.4 Tesla neodymium motor makes this one of the most efficient 6-1/2 car audio speaker on the market! - Other than adding an amplified subwoofer you simply can’t make a better more cost effective improvement to your factory car stereo than swapping out those mediocre factory speakers for the Dayton Audio PS65LP-4 ultra-efficient 6-1/2 drivers. Today even the most basic factory audio systems have various other electronic components and systems integrated into the head unit, as a result less consumers are willing to replace the head unit. Not only could you lose some features but in some cases may end up with electrical problems. Who wants to take out the head unit anyway! Although the Dayton Audio PS65LP-4 (with 2-3/8” mounting depth, full-range capability, excellent off-axis response and exceptional efficiency) was purposely built for car audio, its parameters and design features serve it well for numerous other applications. Such as, but certainly not limited to: a full-range in-wall/on-wall/ceiling speaker system, a devoted midrange in a ultra-efficient three-way system, or as a great candidate for a folded horn or transmission line design for the class “A” amplifier guys. *Per parameter T/S measurement using Dayton Audio DATS systemOther than adding an amplified subwoofer you simply can’t make a better more cost effective improvement to your factory car stereo than swapping out those mediocre factory speakers for the Dayton Audio PS65LP-4 ultra-efficient 6-1/2 drivers. Today even the most basic factory audio systems have various other electronic components and systems integrated into the head unit, as a result less consumers are willing to replace the head unit. Not only could you lose some features but in some cases may end up with electrical problems. Who wants to take out the head unit anyway! Although the Dayton Audio PS65LP-4 (with 2-3/8” mounting depth, full-range capability, excellent off-axis response and exceptional efficiency) was purposely built for car audio, its parameters and design features serve it well for numerous other applications. Such as, but certainly not limited to: a full-range in-wall/on-wall/ceiling speaker system, a devoted midrange in a ultra-efficient three-way system, or as a great candidate for a folded horn or transmission line design for the class “A” amplifier guys. *Per parameter T/S measurement using Dayton Audio DATS systemUltra-efficient, high SPL (99 dB @ 2.83V/1m*) high-performance driverLow-profile 2-3/8 mounting depth suitable for car doors or any shallow designsSmooth high frequency roll-off even at 75° off-axisUnique patent-pending bi-conical cone geometry provides high frequency extension and dispersion, as well as cone rigidityHighly damped polypropylene cone controls cone break-up and provides a smooth roll-offCopper cap to keep inductance under control and to extend high frequency responsePowerful 1.4 Tesla neodymium motor makes this one of the most efficient 6-1/2 car audio speaker on the market!
Description6½' Ultra Efficient Low Profile Full-Range Driver 4 Ohm
ManufacturerDayton Audio
TypeFull-Range
ColourBlack
Coil25.4 mmØ
Hole144mmØ
QTY1
Impedance4Ω (Re 3.2Ω)
Depth63mm
VoiceKapton®
Sens.99.0 dB
Re3.2Ω
Qms3.85
Qes0.26
Qts0.24
Vas17.3L
Sd122.7 cm²
Cms0.82mm/N
Bl6.0 Tm
Pmax80 watts
Fs67.3 Hz
Mms6.8g
Le0.39 mH
Xmax4.0 mm
Diam.165mmØ
WireCCAW
Prms40W
MaterialStamped Steel
MagneticNeodymium
Vd49.1 cm³
Surround MaterialTextile
SeriesPoint Source
Power (RMS)0-50 Watt
Impedance (Ohm)4 ohm
Power40W
Zn4Ω
Inch6.5
Size6.5'
UPC848791003776
Brand.Dayton Audio
Price Typeeach
SKU NoWES_PS65LP-4_2
