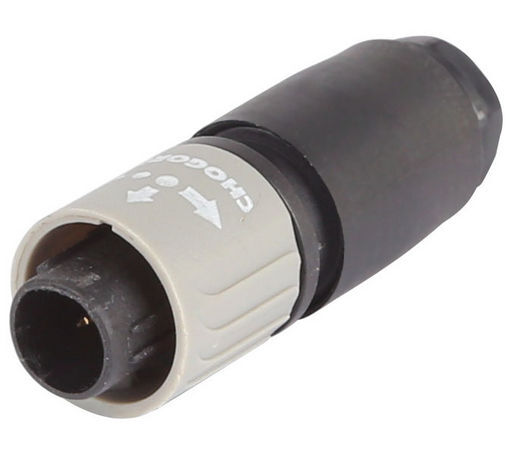

500 SERIES PLUG - PUSH LOCK
MALE PUSH LOCK - MALE PINS
SKU code: WES_11002131-01_1
This is a 500 SERIES PLUG - PUSH LOCK of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 500 SERIES PLUG - PUSH LOCK |
| Notes | MALE PUSH LOCK - MALE PINS 500 series waterproof connector is manufactured with high quality materials to meet different requirements of various environments. Its plastic material is high performance PA66. Male pins are phosphor bronze assembly with good electrical conductivity brass. Terminal surfaces are gold-plated with 4u”-20u”. Superior mechanical properties ensure long effective application with insert and withdraw lifetime up to 3000 times. 500 series connector has a good performance with a 5 seal structure making its waterproof rating reach IP68 standard.Features |
| Description | 500 series 2pin male plug with pin field installable 180° |
| Size | 39x13mmØ |
| Cable | 22AWG |
| Contact | 2 |
| Mechanical Life | 500 mating cycles |
| Cable Range | 2.9-6.3 |
| Wire Gauge | 0.34mm² |
| IP | IP65/IP67 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 110V |
| Rated Current | 2A |
| Chogori Cat Page | 22 |
| Manufacturer | Chogori |
| SKU No | WES_11002131-01_1 |
