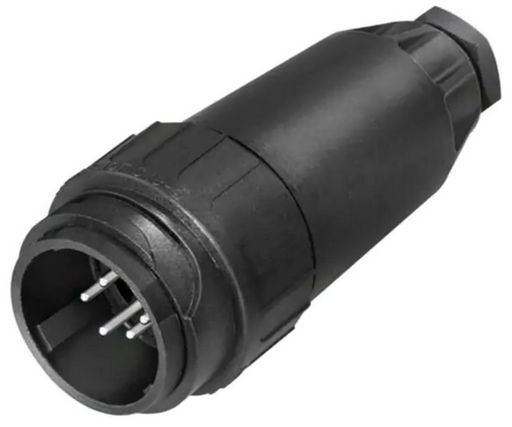

This is a 5+PE MALE PINS BAYONET LOCKING CONNECTOR of brand Amphenol.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | 5+PE MALE PINS BAYONET LOCKING CONNECTOR |
Notes | AMPHENOL 5+PE Male pins cable connector with strain relief and cable retention. Bayonet Locking. Contacts included. Cable Diameter: 14-16mm.Shell Size: 2 Insulation Resistance: ≥ 10(8) Ω Contact Resistance: ≤ 5 mΩ Contacts: 5+PE Version: Straight Cable Diameter: 14-16mm Rated Voltage: 400V Rated Impulse Voltage: 6000V Current Carrying Capacity: 21A Operating Temperature: -40°C to +100°C Protection: IP65 Insertion/Withdrawl Force: ≤ 15 N Lifetime: ≥ 500 mating cycles Strain Relief: Cable retention Contact Plating: Silver/Gold Housing: Polyamid 6.6 Gasket: Neoprene Dielectric Material: Polyamid 6.6 Termination: Screw Wire Gauge: 4mm² (10 AWG) Locking: Bayonet Style: I Rated Voltage per UL 1977: 400V |
Manufacturer | Amphenol |
SKU No | WES_C01620I0051042_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
MPN | |
SKU | WES_C01620I0051042_1 |
Brand | Amphenol |
