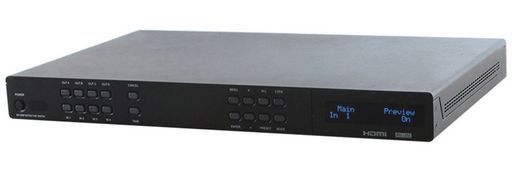

4x4 HDMI MATRIX 4K30 WITH CONTROL SYSTEM CENTRE - CYPRESS
TRIGGER & SWITCH CONTROLS & EXTENDED IP CONTROLS
SKU code: WES_CDPS-UC4H4HFS_1
This is a 4x4 HDMI MATRIX 4K30 WITH CONTROL SYSTEM CENTRE - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4x4 HDMI MATRIX 4K30 WITH CONTROL SYSTEM CENTRE - CYPRESS |
| Notes | TRIGGER & SWITCH CONTROLS & EXTENDED IP CONTROLS This 4×4 HDMI 4K UHD Matrix allows up to 4 HDMI sources to be displayed on any of up to 4 HDMI displays. The built-in fast switching technology greatly reduces the time required between switches before a newly selected source is live. The included control system functionality provides access not only to direct but also indirect control interfaces for all of your devices. Direct control methods such as IR (with IR learning), RS-232, relay and DC triggers allow users to maintain traditional styles of control over devices while indirect device control is possible using telnet allowing users to control newer, more complicated devices. The operation of the system can be easily managed through the included WebGUI by connecting with your PC, laptop or even a mobile device such as a tablet. Front-panel controls, with an OLED screen to display current settings, are available for hands-on control. Additionally Telnet, RS-232, and an IR remote are available control options.HDMI v1.4a with 3D and 4K UHD support, DVI 1.0 compatibleSupports 4 HDMI inputs and 4 HDMI outputsSupports resolutions up to 4K UHD: 3840×2160@24/25/30Hz & 3840×2160@50/60Hz (YUV 4:2:0), 4096×2160@24/25/30Hz & 4096×2160@50/60Hz (YUV 4:2:0)Supports pass-through of LPCM 2.0/5.1/7.1, bitstream, and HD bitstream audio formatsSupports individual or global EDID managementSupports HDCP 1.4 for all HDMI inputs and outputsPer-input HDCP support control: Choose between Standard and Apple mode (Apple mode allows for the display of non-HDCP required content from Apple devices on non-HDCP displays)Supports 1 IR Learning input, 8 IR Blaster outputs, 8 Trigger inputs, 8 Relay outputs, 2 COM ports, and 4 Ethernet portsSupports an IR learning function which captures the IR signal broadcast by your remote when you press a button for retransmission as a part of a macroSupports 8 trigger inputs with a voltage range of 0~15V (triggers at 5V)Supports baud rates up to 115,200bpsSupports 10/100Mbps Ethernet network connections |
| Description | 4K UHD 4×4 HDMI Matrix with Control System Center |
| 4K | Yes |
| Bandwidth | 10.2Gbps |
| Cable Length | 5M (4K) |
| Chassis. | Metal |
| Controller | 1×IR Learner (3.5mm), 1×IR Extender (3.5mm), 8×Trigger (2-pin Terminal Block), 8×IR Blaster (3.5mm), 8×Relay (2-pin Terminal Block), 2×COM (9-pin D-sub), 4×LAN (RJ45), 1×IP Control (RJ45), 1×RS-232 (9-pin D-sub) |
| Dimensions | 482x276x49mm |
| EDID | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 4×HDMI |
| IR | Yes |
| Max Res. | 4K @ 30Hz |
| Output | 4×HDMI |
| RS-232 | Yes |
| Size | 482x276x49mm |
| Manufacturer | Cypress |
| SKU No | WES_CDPS-UC4H4HFS_1 |
