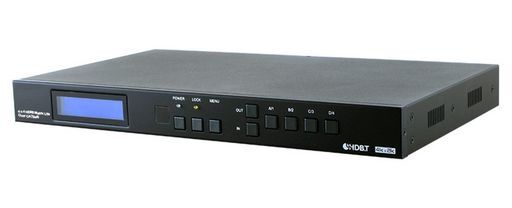

4x4/8×8 HDMI OVER CAT5E/6/7 MATRIX WITH LAN SERVING
4x4/8×8 HDMI OVER CAT5E/6/7 MATRIX WITH LAN SERVING
SKU code: WES_CMSI-4H4CVL_1
This is a 4x4/8×8 HDMI OVER CAT5E/6/7 MATRIX WITH LAN SERVING of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4x4/8×8 HDMI OVER CAT5E/6/7 MATRIX WITH LAN SERVING |
| Notes | The HDBaseT™ 4 by 4 and 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions 1080p Full HD up to 1920x1200@60Hz), multi-channel digital audio and control via IR, RS-232 or Telnet and Web GUI from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 60m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio as well as 3D content can be displayed when connecting a 3DTV and 3D source.HDMI, HDCP 1.1 and DVI compliantSupports HDMI 3D and 4Kx2K featuresSupports resolutions VGA~WUXGA and 480i~1080pSupports distances up to 70 metres through CAT6/7 cablesSupports HDMI input up to 15M at 8-bit or 10M at 12-bit resolutionSupports bi-directional IR from input and output locationsRS-232, remote IR, on-panel control and IP Control (Telnet & Web GUI)Supports external and internal EDID settingsSupports LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio transmission |
| Description | The HDBaseT™ 4 by 4 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 1080p Full HD and 1920x1200@60Hz) and multi-channel digital audio from four high definition sources to four outputs over a single CAT5e/6/7 cable (up to 60m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source. It also has the added benefit of beibcontrol via IR, RS-232, Telnet or Web GUI. |
| Input | 4x HDMI |
| Output | 4x CAT5e/6/7 |
| IR | Yes |
| Cable Length | 60M |
| 3D | Yes |
| CEC | - |
| EDID | - |
| HDCP | Yes |
| RS232 Extension | Yes |
| IR Extension | Yes |
| PoE | - |
| Ethernet | - |
| Extender Cable | CAT5e/6/7 |
| HD Audio | Yes |
| 4K | - |
| ARC | - |
| HEC | - |
| Deep Colour | - |
| RS-232 | Yes |
| PoC | - |
| Brand. | Cypress |
| Manufacturer | Cypress |
| Interface | HDMI/CAT |
| SKU No | WES_CMSI-4H4CVL_1 |
