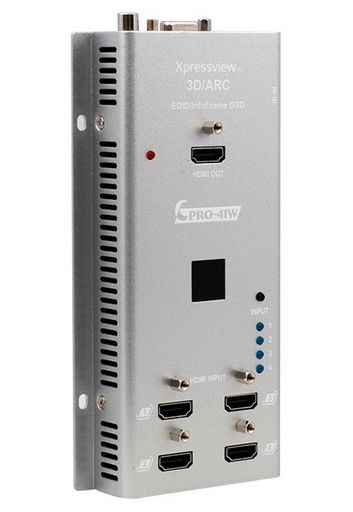

4x1 HDMI V1.4 WALL PLATE SWITCH 1080P WITH ARC/CEC - CYPRESS
PROFESSIONAL GRADE WALL MOUNT SOLUTION
SKU code: WES_CPRO-41W_1
This is a 4x1 HDMI V1.4 WALL PLATE SWITCH 1080P WITH ARC/CEC - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | 4x1 HDMI V1.4 WALL PLATE SWITCH 1080P WITH ARC/CEC - CYPRESS |
Notes | PROFESSIONAL GRADE WALL MOUNT SOLUTION This high performance four-input & one-output HDMI v1.4 switch with digital audio inputs and outputs. It supports an HDCP repeater function and fast switching between any of the four HDMI input ports. The system supports all 3D TV formats in addition to all HDTV formats up to 1080p 12-bit Deep Colour. Audio support includes Dolby TrueHD and DTS-HD Master Audio 7.1CH. Wall mounted design for specific installations. Premium professional grade unit includes HDCP repeater, Sink EDID, Audio Return Port, Info frame, On Screen Display control, Remote control, RS-232 computer control.Support multiplexed HDMI 4-input and 1-outputSupports HDMI ARC (Audio Return Channel) and CEC (Consumer Electronic Channel) featuresSupports High-bandwidth Digital Content Protection (HDCP) and HDMI 3D signalFast switching on all HDMI input portsCharacter and icon based On-Screen Display (OSD): System information for Software version, Sink EDID, Source infoframe, and HDMI input Audio & Audio Return selectionHDCP repeater supportDeep Color support 36/30/24-bit, 1080p@60HzHDMI cable distance tested with 1080p 8/12 bits resolution, the input & output distance can run up to 10 &15 metersAudio support HDMI compatible audio interface, Dedicated, flexible audio input/output port, Dolby TrueHD, DTS-HD Master Audio 7.1CH, and Full audio input and output support |
Description | Digital /Analog Audio |
Input | 4x HDMI |
Output | 1x HDMI |
Interface | HDMI |
Compliance | 1.4 |
3D | Yes |
CEC | Yes |
EDID | Yes |
Max Res. | WUXGA/1080p |
Chassis. | Wall |
HDCP | Yes |
4K | - |
HDMI Output | 1 |
HDMI Input | 4 |
Page | 7 |
Manufacturer | Cypress |
SKU No | WES_CPRO-41W_1 |
