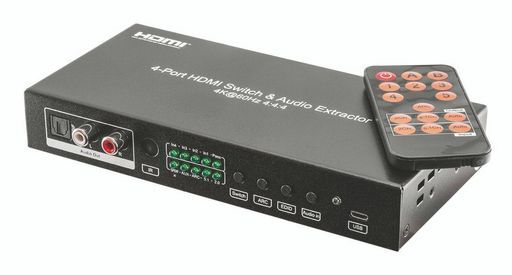

This is a 4x1 HDMI SWITCH 4K60 + AUDIO EXTRACTOR/INJECTOR - PRO2 of brand Pro2.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 4x1 HDMI SWITCH 4K60 + AUDIO EXTRACTOR/INJECTOR - PRO2
Notes IR REMOTE CONTROL OF HDMI SOURCE + AUDIO SOURCE & OUTPUT Easily switch between four different HDMI sources with the push of a button or using the included remote. The HDMI4S18G 4 in 1 out HDMI switch supports 4K, 18GBPS bandwidth, HDMI version 2.0, HDR10, and ARC. In addition, the HDMI4S18G can extract audio from the HDMI signal, which is useful for user who wants to connect the audio output to external speakers or surround sound systems instead of their TV monitors speaker. With Audio Return Channel (ARC), you can grab the audio signal from the TV and output it using the S/PDIF or RCA outputs. Also has SPDIF and 3.5mm Stereo inputs for optional Injection into the HDMI output.Auto Switch HDMI x4 or manually via the front panel or remote controlExtract stereo audio via RCA outputs or S/PDIF toslink (2CH/5.1CH) outputAudio injecting support via 3.5mm aux and S/PDIF toslink input (switch)Up to 18Gbps bandwidth HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)Audio Return Channel (ARC) with remote control mode selectSimultaneous audio output: Stereo and toslink12 bits per channel (36 bit all channels) deep colourHDCP 2.2, HDR10 supportUncompressed LPCM 7.1 audioDTS-HD Master and Dolby True HD
Description4 In 1 Out 18Gbps HDMI Switcher With Audio Extraction Suitable For 4k @ 60Hz
HD AudioYes
HDCPYes
Input4x HDMI, 1x Toslink, 1x3.5mm audio
Output1x HDMI, RCA(L/R), 1x Toslink
Supported Output Resolution4K @ 60Hz
Max Res.4K @ 60Hz
ManufacturerPro2
SKU NoWES_HDMI4S18G_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_HDMI4S18G_1
Brand Pro2
