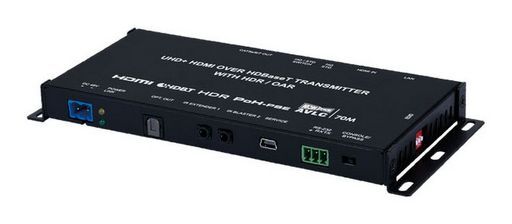

4K60 HDMI OVER HDBaseT EXTENDER WITH OAR - 70M RANGE - CYPRESS
WITH IR, RS-232, PoH & LAN
SKU code: WES_CH-1529TXV_1
This is a 4K60 HDMI OVER HDBaseT EXTENDER WITH OAR - 70M RANGE - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4K60 HDMI OVER HDBaseT EXTENDER WITH OAR - 70M RANGE - CYPRESS |
| Notes | WITH IR, RS-232, PoH & LAN This 4K UHD HDMI over HDBaseT Transmitter and Receiver (Sold separate) is a great solution for extending HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 70 meters (4K). Multiple data and control interfaces are provided, including IR, RS-232 and LAN connections. This system complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when connected to a compatible AVLC Transmitter. Beyond video, data, and control this unit also contains useful audio features. The Optical Audio Return (OAR) feature supports transmitting optical audio back to a compatible Transmitter for local playback. Rounding out the feature set is automatic TMDS re-clocking support and robust EDID management. This Receiver (CH-1529RXV) is powered by 48V PoH (Power over HDBaseT) from a compatible Transmitter (CH-1529TXV), allowing for flexibility within different installation scenarios.Optical Audio Return (OAR) feature supports transmitting optical audio BACK to the Transmitter for local playbackComprehensive EDID management support including 6 pre-defined EDIDs, 9 user EDIDs and an EDID bypass modePC-based EDID management software allows for the uploading of customized user EDIDs via USBHDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatibleHDCP 2.2 and HDCP 1.x compliantSupports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and outputSupports Deep Color input and output up to 12-bitSupports 10-bit and 12-bit HDR (High Dynamic Range) input/outputSupports CEC bypassSimultaneous reception of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p and 70m/230ft at 4KHDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)Support for compatible AVLC (Adaptive Visually Lossless Compression) Transmitters, allowing for the output of HDMI sources that were originally beyond 10.2Gbps (340MHz) and up to 18Gbps (600MHz) with no loss of visual qualitySupports the Optical Audio Return (OAR) function to transmit optical audio from the Receiver to a compatible TransmitterPerforms TMDS re-clocking and signal re-generation for improved signal integrityUltra-thin wall mount design (16mm thickness) for convenient installationPowered by standard 48V PoH from Transmitter (CH-1529TXV) to Receiver (CH-1529RXV) |
| Description | HDMI over HDBaseT Transmitter with LAN pass through port, Optical Audio Return & 48V power delivery to receiver |
| Type | Transmitter |
| 4K | Yes |
| CEC | Yes |
| Chassis. | Aluminium |
| Cable Length | 70M (4K) |
| Bandwidth | 10.2Gbps |
| Dimensions | 183x81x16mm |
| Ethernet | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 1x HDMI |
| IR | Yes |
| Max Res. | 4K@60Hz |
| Output | 1x HDBaseT, 1x S/PDIF |
| Pass-through | 1x IR Extender, 1x IR blaster, 1x RS232, 1x LAN |
| PoE | PoH |
| RS-232 | Yes |
| Size | 183x81x16mm |
| Compatible with | CH-1529RXV |
| Manufacturer | Cypress |
| AVLC | Yes |
| SKU No | WES_CH-1529TXV_1 |
