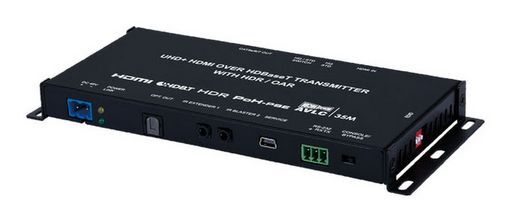

4K60 HDMI OVER HDBaseT EXTENDER WITH OAR - 35M RANGE - CYPRESS
WITH IR, RS-232, PoH
SKU code: WES_CH-1529TXPLV_1
This is a 4K60 HDMI OVER HDBaseT EXTENDER WITH OAR - 35M RANGE - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4K60 HDMI OVER HDBaseT EXTENDER WITH OAR - 35M RANGE - CYPRESS |
| Notes | WITH IR, RS-232, PoH This mountable slimline 4K HDMI over HDBaseT extender system includes a transmitter and receiver (sold separately) and is a great solution for extending UHD video and audio as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances up to 35 meters for 4K resolution. Complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards.The use of AVLC (Adaptive Visually Lossless Compression) technology overcomes the limitation of HDBaseT which only has a bandwidth of 10.2Gbps. This extender system let you transmit high quality HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR. The Optical Audio Return (OAR) feature supports transmitting optical audio back to a compatible Transmitter for local playback. Multiple data and control interfaces are also provided, including IR, RS-232 and LAN connections. The Receiver (PD) is powered by 48V Power over HDBaseT (PoH) provided by the Transmitter (PSE), allowing for greater flexibility within different installation scenarios. Includes mounting brackets for convenient installation.HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatibleHDCP 2.2 and HDCP 1.x compliantSupports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and outputSupports Deep Color input and output up to 12-bitSupports 10-bit and 12-bit HDR (High Dynamic Range) input/outputSupports CEC bypassSimultaneous transmission of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 70m/230ft at 1080p and 35m/115ft at 4KHDBaseT feature support: HD Video and Audio, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for sources up to 18Gbps (600MHz) to be sent to a compatible Receiver with no loss of visual qualityThe AVLC feature allows manual selection between High Quality Mode (Full bandwidth) and Standard Mode (Lower bandwidth, useful for longer cable runs with 4K sources)Supports the Optical Audio Return (OAR) function to transmit optical audio from a compatible Receiver to the TransmitterComprehensive EDID management support including 6 pre-defined EDIDs, 9 user EDIDs and an EDID bypass modePC-based EDID management software allows for the uploading of customized user EDIDs via USBSupports HDMI DDC bus clock stretching for improved compatibility with certain Blu-ray playersPerforms TMDS re-clocking and signal re-generation for improved signal integrityUltra-thin wall mount design (16mm thickness) for convenient installationSupports standard 48V PoH from Transmitter (PSE) to Receiver (PD) (with compatible Transmitters and Receivers only) |
| Description | HDMI over HDBaseT Transmitter with Optical Audio Return & 48V power delivery to receiver |
| 4K | Yes |
| Bandwidth | 10.2Gbps |
| Cable Length | 35M (4K) |
| CEC | Yes |
| Chassis. | Aluminium |
| Dimensions | 183x81x16mm |
| Ethernet | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 1x HDMI |
| IR | Yes |
| Max Res. | 4K@60Hz |
| Output | 1x HDBaseT, 1x S/PDIF |
| Pass-through | 1x IR Extender, 1x IR blaster, 1x RS232 |
| PoE | PoH |
| RS-232 | Yes |
| Size | 183x81x16mm |
| Type | Transmitter |
| Compatible with | CH-1529RXPLV |
| Manufacturer | Cypress |
| AVLC | Yes |
| SKU No | WES_CH-1529TXPLV_1 |
