4K UHD SWITCHERS - CYPRESS
4K UHD SWITCHERS - CYPRESS
SKU code: WES_CPLUS-V4H1HP_1

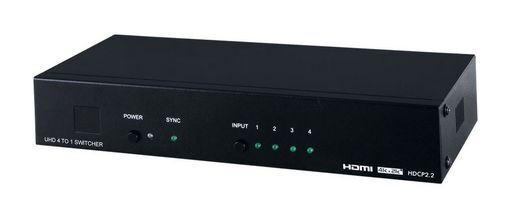

This is a 4K UHD SWITCHERS - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4K UHD SWITCHERS - CYPRESS |
| Notes | CPLUS-V4H1H is a 4 by 1 HDMI Switcher is a brand new high performance design for the next generation of audio/video equipment. It allows a single HDMI output to switch between 4 HDMI sources. This unit comes with full support for 18Gbps (600MHz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 12-bit Deep Colour up to 1080p@60Hz, HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0a specification. The included auto switching functionality allows for the possibility of hands-free, user friendly, operation. Control is provided via front panel buttons and RS-232. IR receiver and IR remote control are optional.FEATURES FOR CPLUS-V4H1HHDMI 2.0a and DVI 1.0 compliantHDCP 1.x and 2.2 compliant4 HDMI inputs and 1 HDMI outputSupports UHD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit)Supports 16-bit Deep Color up to 1080p@60HzSupports 10-bit and 12-bit HDR pass-throughSupports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD BitstreamCEC pass-throughSupport Internal/External EDID managementControllable via front-panel buttons, RS- 232, and optional IR remote |
| Description | 4×1 HDMI Switcher with IP control |
| 4K | Yes |
| Bandwidth | 18Gbps |
| Cable Length | 5M (4K) |
| Chassis. | Metal |
| Dimensions | 240x112x48mm |
| EDID | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 4×HDMI |
| Output | 1x HDMI |
| Controller | 1×IR Extender, 1×RS-232, 1x RJ45(Control) |
| IR | Yes |
| Max Res. | 4K@60Hz (4:4:4) |
| RS-232 | Yes |
| Size | 240x112x48mm |
| Manufacturer | Cypress |
| SKU No | WES_CPLUS-V4H1HP_1 |
