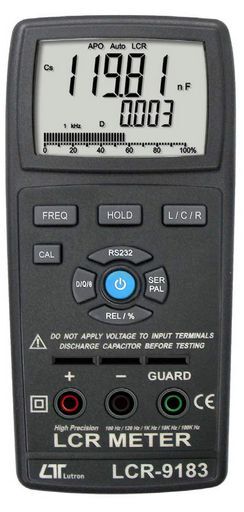

4.5 DIGIT LCR MULTIMETER - LUTRON
INDUCTANCE, CAPACITANCE, AND RESISTANCE
SKU code: WES_LCR9183_1
This is a 4.5 DIGIT LCR MULTIMETER - LUTRON of brand Lutron.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4.5 DIGIT LCR MULTIMETER - LUTRON |
| Notes | INDUCTANCE, CAPACITANCE, AND RESISTANCE Intelligent microprocessor circuit , professional instrument. 19999 and 1999 counts dual LCD display + bargraph. Auto LCR smart check and measurement. L : 1.00 uH to 2000.0 H (1.0-1.5%) C: 1.00 pF to 2000.0 uF (1.0-2.0%) R: 1.00 ohm to 200.00M ohm (0.8-1.5%) Series/Parallel modes are selectable. Five test frequencies are available : 100/120/1K/10K/100KHz 0.6Vrms Ls/Lp/Cs/Cp with D/Q/ESR Parameter. LCD Display with backlight. Alligator test leads included. DC 9V battery required.Electrical Specifications Resistance DCR 20 Ω ( 0.8% + 5d )* 200 Ω ( 0.8% + 5d ) 2 KΩ ( 0.8% + 5d ) 20 KΩ ( 0.8% + 5d ) 200 KΩ ( 0.8% + 5d ) 2 MΩ ( 0.8% + 5d )* 20 MΩ ( 1.5% + 5d )* 200 MΩ ( 2.5% + 5d )* *After Calibration Resistance ( Rp/Rs ) Range - Accuracy (100 Hz/120 Hz) - Accuracy (1000 Hz) 20 Ω ± ( 1.2% + 5d ) ± ( 1.2% + 5d ) * 200 Ω ± ( 0.8% + 5d ) ± ( 0.8% + 5d ) 2 KΩ ± ( 0.8% + 5d ) ± ( 0.8% + 5d ) 20 KΩ ± ( 0.8% + 5d ) ± ( 0.8% + 5d ) 200 KΩ ± ( 0.8% + 5d ) ± ( 0.8% + 5d ) 2 MΩ ± ( 1.5% + 5d ) ± ( 1.5% + 5d )* 20 MΩ ± ( 1.5% + 5d ) ± ( 2.5% + 5d )* 200 MΩ ± ( 2.5% + 5d ) ± ( 6% + 5d )* *After Calibration Range - Accuracy (10 KHz) - Accuracy (100 KHz) 10 KHz 100 KHz 20 Ω ± ( 1.2% + 5d ) ± ( 2.5% + 5d ) * 200 Ω ± ( 0.8% + 5d ) ± ( 0.8% + 5d ) 2 KΩ ± ( 0.8% + 5d ) ± ( 0.8% + 5d ) 20 KΩ ± ( 0.8% + 5d ) ± ( 0.8% + 5d ) 200 KΩ ± ( 0.8% + 5d ) ± ( 0.8% + 5d ) 2 MΩ ± ( 1.5% + 5d ) ± ( 3% + 5d ) * 20 MΩ ± ( 2.5% + 5d ) ------ * *After Calibration Capacitance ( Cp/Cs ) : D 0.1 Range - Accuracy(100 Hz/120 Hz) - Accuracy (1000 Hz) 20 pF ± ( 2.5% + 5d ) ± ( 1.5% + 5d )* 200 pF ± ( 1.5% + 5d ) ± ( 1.5% + 5d )* 2000 pF ± ( 1.2% + 5d ) ± ( 1.5% + 5d ) * 20 nF ± ( 1.0% + 5d ) ± ( 1% + 5d ) 200 nF ± ( 1.0% + 5d ) ± ( 1% + 5d ) 2000 nF ± ( 1.0% + 5d ) ± ( 1% + 5d ) 20 uF ± ( 1.0% + 5d ) ± ( 1% + 5d ) 200 uF ± ( 1.0% + 5d ) ± ( 1% + 5d ) * 2000 uF ± ( 2% + 5d ) ± ( 2% + 5d ) * 20 mF ± ( 3% + 5d ) ------------------- * Range - Accuracy(10 KHz) - Accuracy (100 KHz) 10 KHz 100 KHz 20 pF ± ( 1.5% + 5d ) ± ( 1.5% + 5d ) * 200 pF ± ( 1.0% + 5d ) ± ( 1.0% + 5d ) * 2000 pF ± ( 1.0% + 5d ) ± ( 1.0% + 5d ) * 20 nF ± ( 1.0% + 5d ) ± ( 1.0% + 5d ) 200 nF ± ( 1.0% + 5d ) ± ( 1.0% + 5d ) 2000 nF ± ( 1.0% + 5d ) ± ( 1.0% + 5d ) 20 uF ± ( 1.5% + 5d ) ± ( 1.5% + 5d ) 200 uF ± ( 2% + 5d ) ------------------- * *After calibration |
| Description | LCR Meter |
| Manufacturer | Lutron |
| SKU No | WES_LCR9183_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_LCR9183_1 |
| Brand | Lutron |
