4 REFERENCE SERIES WOOFER
WITH TRUNCATED FRAME
SKU code: WES_RS100T-8_1

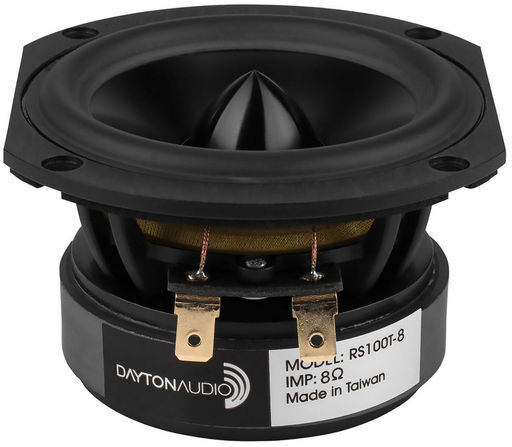

This is a 4 REFERENCE SERIES WOOFER of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4 REFERENCE SERIES WOOFER |
| Notes | WITH TRUNCATED FRAME Dayton Audio’s RS100T-8 4 Woofer with truncated frame features an advanced motor system and a rigid aluminium cone. It can outperform drivers that cost several times the price. Its low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. The woofer features a black anodised cone, heavy-duty cast frame, low-loss rubber surround, solid aluminium phase plug, distortion-reducing magnetic gap copper ring, rubber magnet boot, and gold terminals.Truncated cast frame, great for line arrays / MTM speaker designsLong-excursion motor and suspension for strong bass performanceAdvanced low-distortion motor designDistortion-reducing copper ring in magnetic gapLightweight black anodised aluminium cone |
| Description | 4' Reference Woofer Truncated Frame |
| Manufacturer | Dayton Audio |
| Power | 30Wrms |
| Power (RMS) | 0-50 Watt |
| Impedance | 8Ω (Re 6.5Ω) |
| Fs | 94.9Hz |
| Sens. | 87dB |
| Qms | 2.4 |
| Qes | 0.79 |
| Qts | 0.6 |
| Vas | 2.4L |
| Hole | 77mmØ |
| Depth | 51mm |
| Diam. | 98mmØ |
| Le | 0.5mH |
| QTY | 1 |
| Cms | 1.3mm/M |
| Mms | 2.2g |
| Coil | 25mmØ |
| Pmax | 30W |
| Prms | 30W |
| Sd | 36.3cm² |
| Re | 6.5Ω |
| UPC | 844632079788 |
| Voice | Aluminium |
| Colour | Black |
| Wire | Copper |
| Price Type | each |
| Series | Reference Series |
| Type | Woofer |
| SKU No | WES_RS100T-8_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_RS100T-8_1 |
| Brand | Dayton Audio |
