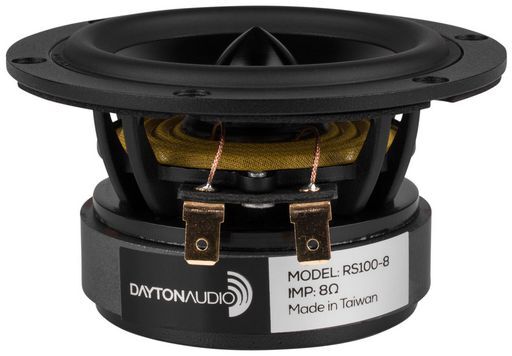

4 REFERENCE SERIES FULL RANGE DRIVER - DAYTON AUDIO
80HZ-20KHZ FULL RANGE
SKU code: WES_RS100-8_1
This is a 4 REFERENCE SERIES FULL RANGE DRIVER - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4 REFERENCE SERIES FULL RANGE DRIVER - DAYTON AUDIO |
| Notes | 80HZ-20KHZ FULL RANGE The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminium cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodised cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminium phase plug, and gold terminals.One of the lowest distortion, highest resolution driver series availableLow-distortion high-excursion motor system with two short-circuit pathsCompliant suspension and rigid black anodized aluminium cone for strong bass performanceHeavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminium phase plug |
| Description | 4' REFERENCE SERIES FULL-RANGE DRIVER - DAYTON AUDIO |
| Material | Alloy |
| Type | Full Range |
| Size | 4' |
| Power | 30Wrms |
| Coil | 25mmØ |
| Impedance | 8Ω (Re 6.4Ω) |
| Depth | 51mm |
| Sens. | 84.6dB |
| Re | 6.4Ω |
| Qms | 2.37 |
| Qes | 0.76 |
| Qts | 0.58 |
| Vas | 1.43L |
| Sd | 35.3cm² |
| Cms | 0.82mm/N |
| Fs | 92.2Hz |
| Mms | 3.63g |
| Zn | 8Ω |
| Le | 0.5mH |
| Diam. | 98mmØ |
| Manufacturer | Dayton Audio |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 0-50 Watt |
| Inch | 4 |
| Price Type | each |
| Prms | 30W |
| QTY | 1 |
| Hole | 77.2mmØ |
| Series | Reference Series |
| SKU No | WES_RS100-8_1 |
