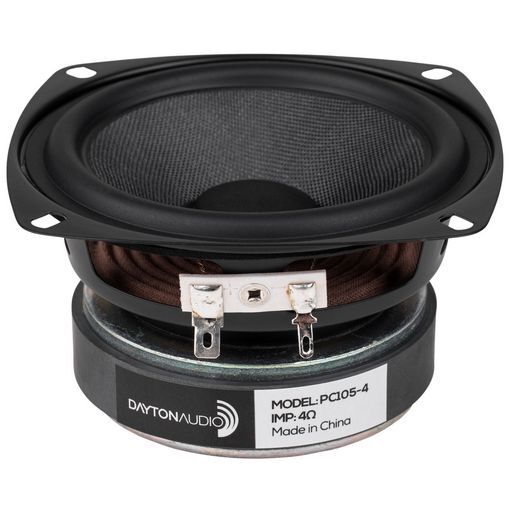

4 FULL RANGE POLY CONE DRIVER - DAYTON
SMOOTH RESPONSE WITH TRUE FULL-RANGE REPRODUCTION
SKU code: WES_PC105-4_1
This is a 4 FULL RANGE POLY CONE DRIVER - DAYTON of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4 FULL RANGE POLY CONE DRIVER - DAYTON |
| Notes | SMOOTH RESPONSE WITH TRUE FULL-RANGE REPRODUCTION Dayton Audio’s PC105 4” full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an excellent value.Poly damped woven glass fibre cone controls cone break-up and provides a smooth roll-offCopper cap keeps inductance under control and extends high frequency response1 vented aluminium voice coil former and vented pole piece for high power handlingHigh energy ferrite magnet increases BL for higher efficiency and more outputSmooth response with true full-range reproduction for simple speaker designs |
| Description | 4' FULL-RANGE POLY CONE DRIVER |
| Type | Full Range |
| Size | 4' |
| Power | 40Wrms |
| Coil | 25.4mmØ |
| Impedance | 4Ω (Re 3.3Ω) |
| Depth | 60mm |
| Sens. | 90.3dB |
| Re | 3.3Ω |
| Qms | 2.17 |
| Qes | 0.67 |
| Qts | 0.51 |
| Vas | 5.9L |
| Sd | 52.8cm² |
| Cms | 0.92mm/N |
| Fs | 81.4Hz |
| Mms | 4.2g |
| Zn | 4Ω |
| Le | 0.32mH |
| Diam. | 126mmØ |
| Prms | 40W |
| Power (RMS) | 0-50 Watt |
| Impedance (Ohm) | 4 ohm |
| Inch | 4 |
| Manufacturer | Dayton Audio |
| Hole | 102mmØ |
| QTY | 1 |
| Price Type | each |
| Series | Full Range |
| SKU No | WES_PC105-4_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_PC105-4_1 |
| Brand | Dayton Audio |
