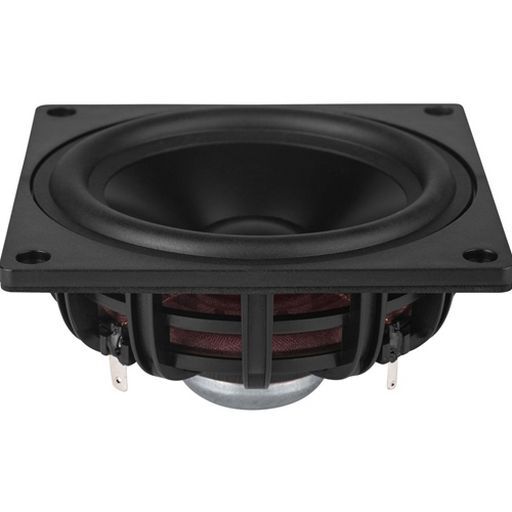

4 DUAL MAGNET ALUMINUM CONE - DAYTON AUDIO
4 DUAL MAGNET ALUMINUM CONE - DAYTON AUDIO
SKU code: WES_DMA105-4_1
$47.95
This is a 4 DUAL MAGNET ALUMINUM CONE - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4 DUAL MAGNET ALUMINUM CONE - DAYTON AUDIO |
| Notes | Dayton Audios DMA105-8 4 high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make the DMA105-8 the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design. - Excellent high frequency response for true full-range applications Dual neodymium motor to create a symmetrical magnetic field for superb control Large copper cap lowers distortion while improving high frequency response Vented aluminum voice coil former with exceptional heat dissipation for high power handling Exclusive 12-spoke open frame design provides extensive venting and minimal reflection DIY friendly, oversized mounting flange makes installation simple Matching tunable passive radiators also available! - Providing high efficiency with low distortion, Dayton Audios DMA105-8 4 aluminum cone full-range is an ideal driver for use in many of todays modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA105-8 is the perfect full-range for the job. Designed for the highest performance while delivering maximum value, the no compromise design of the DMA105-8 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1 voice coil is wound on a vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 12-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion. Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8 radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4 straight cut router bit.Providing high efficiency with low distortion, Dayton Audios DMA105-8 4 aluminum cone full-range is an ideal driver for use in many of todays modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA105-8 is the perfect full-range for the job. Designed for the highest performance while delivering maximum value, the no compromise design of the DMA105-8 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1 voice coil is wound on a vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 12-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion. Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8 radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4 straight cut router bit.Excellent high frequency response for true full-range applicationsDual neodymium motor to create a symmetrical magnetic field for superb controlLarge copper cap lowers distortion while improving high frequency responseVented aluminum voice coil former with exceptional heat dissipation for high power handlingExclusive 12-spoke open frame design provides extensive venting and minimal reflectionDIY friendly, oversized mounting flange makes installation simpleMatching tunable passive radiators also available! |
| Description | DMA105-4 4' Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm |
| Manufacturer | Dayton Audio |
| Le | 0.3 mH |
| Qts | 0.51 |
| Qes | 0.63 |
| Power (RMS) | 0-50 Watt |
| QTY | 1 |
| Cms | 1.06 mm/N |
| Diam. | 104x104mm |
| Vd | 13.5 cm³ |
| Xmax | 2.5 mm |
| Qms | 2.6 |
| Coil | 25.4 mm |
| Bl | 3.4 Tm |
| Re | 3.4Ω |
| Power | 35W |
| Prms | 35W |
| Inch | 4 |
| Impedance (Ohm) | 4 ohm |
| Size | 4' |
| Vas | 4.2L |
| Mms | 4.5 g |
| Depth | 47.4mm |
| Zn | 4Ω |
| Impedance | 4Ω (Re 3.4Ω) |
| Sd | 54.1 cm² |
| Pmax | 70 watts |
| Fs | 72.7 Hz |
| UPC | 848791005282 |
| Sens. | 89.8 dB |
| Hole | 96mmØ |
| Colour | Black |
| Brand. | Dayton Audio |
| Price Type | each |
| Type | Full-Range |
| Series | Full-Range |
| SKU No | WES_DMA105-4_1 |
