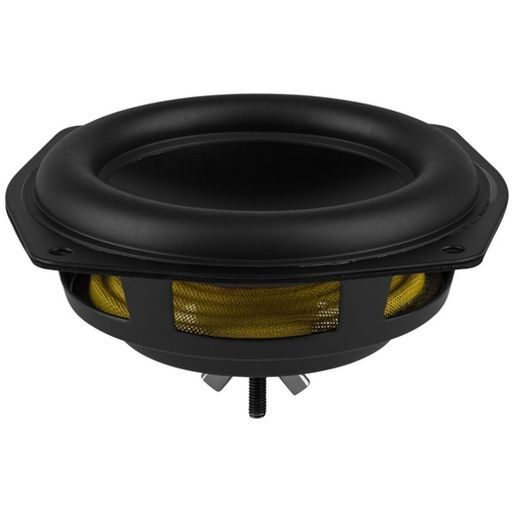

4 ALUMINUM CONE PASSIVE RADIATOR - DAYTON AUDIO
4 ALUMINUM CONE PASSIVE RADIATOR - DAYTON AUDIO
SKU code: WES_ND105-PR_1
This is a 4 ALUMINUM CONE PASSIVE RADIATOR - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4 ALUMINUM CONE PASSIVE RADIATOR - DAYTON AUDIO |
| Notes | The Dayton Audio ND105-PR 4 passive radiator makes it easy to tune small enclosures lower without increasing overall enclosure size. With a one-piece aluminum cone, rubber surround, high excursion capability, and easily adjustable mass, this passive radiator is perfect for building extremely compact speaker systems capable of incredible low frequency output. - Rigid black anodized aluminum alloy cone High excursion capability: 12 mm peak to peak Same family look as ND Series woofers Adjustable mass for a vast range of tuning frequencies - Tune small enclosures with Dayton Audios ND105-PR 4 passive radiator in speaker designs where a conventional port is not a viable option. This compact passive radiator includes all of the features you expect with larger radiators including high excursion capability, aluminum cone, rubber surround, and adjustable mass. Visually identical to Dayton Audios popular ND series drivers, the ND105-PR can be used with any small speaker. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a multi-driver array, sound bar, or portable Bluetooth speaker, the Dayton Audio ND105-PR introduces a new range of possibilities. The ND105-PR 4 passive radiator includes: (1) Passive radiator (1) 21.8 gram disk weights (1) Wing nut Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = VdTune small enclosures with Dayton Audios ND105-PR 4 passive radiator in speaker designs where a conventional port is not a viable option. This compact passive radiator includes all of the features you expect with larger radiators including high excursion capability, aluminum cone, rubber surround, and adjustable mass. Visually identical to Dayton Audios popular ND series drivers, the ND105-PR can be used with any small speaker. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a multi-driver array, sound bar, or portable Bluetooth speaker, the Dayton Audio ND105-PR introduces a new range of possibilities. The ND105-PR 4 passive radiator includes: (1) Passive radiator (1) 21.8 gram disk weights (1) Wing nut Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = VdRigid black anodized aluminum alloy coneHigh excursion capability: 12 mm peak to peakSame family look as ND Series woofersAdjustable mass for a vast range of tuning frequencies |
| Description | ND105-PR 4' Aluminum Cone Passive Radiator |
| Manufacturer | Dayton Audio |
| Type | Passive Radiator |
| Colour | Black |
| Hole | 93mmØ |
| QTY | 1 |
| Impedance | Passive |
| Depth | 67mm |
| Qms | 5.93 |
| Vas | 2.6L |
| Sd | 51.5 cm² |
| Cms | 0.68 mm/N |
| Fs | 51.5 Hz |
| Mms | 13.9g |
| Rms | 0.76 kg/s |
| Xmax | 6 mm |
| Diam. | 105mmØ |
| Material | Steel |
| Vd | 0.03 liters |
| Surround Material | Rubber |
| Series | ND Series |
| Inch | 4 |
| Size | 4' |
| UPC | 848791004841 |
| Brand. | Dayton Audio |
| Price Type | each |
| SKU No | WES_ND105-PR_1 |
