4×4 4K UHD HDMI UHD & AUDIO MATRIX WITH FAST SWITCHING
4×4 4K UHD HDMI UHD & AUDIO MATRIX WITH FAST SWITCHING
SKU code: WES_CDPS-U4H4HSA_1

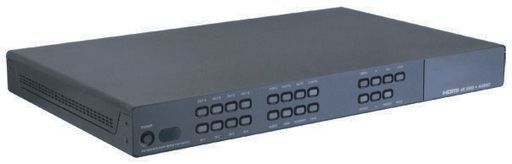

This is a 4×4 4K UHD HDMI UHD & AUDIO MATRIX WITH FAST SWITCHING of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4×4 4K UHD HDMI UHD & AUDIO MATRIX WITH FAST SWITCHING |
| Notes | The 4 by 4 HDMI UHD and Audio Matrix allows HDMI and audio signals to be routed to and simultaneously displayed on any of its four connected HDMI displays and/or audio output equipment. The addition of audio selection and extension features allows users to utilize both video and audio more efficiently. Fast Switching technology can greatly reduce the time required to swap between inputs. It supports the latest HDMI features such as 4K2K, 3D, 36-bit Deep Colour. All operation and control can be done via on-panel buttons, IR remote control, RS-232 or Ethernet protocol.HDMI (with 3D & 4K2K support), HDCP and DVI compliantSupports four HDMI inputs and four HDMI outputsSupports external audio inputs and outputs for HDMI outputs selection and additional audio extension up to 300mDisplays any of four High-Definition sources on four HDTV displays simultaneously with Fast Switching technologySupports 3D signalsSupports HDTV resolutions up to 4K2K (3840x2160@24/25/30/50/60Hz@YUV420 & 4096x2160@24/50/60Hz@YUV420)Supports data rates up to 340Mbps/10.2Gbps and ‘Deep Colour’ up to 1080p 36-bit resolutionEDID setting can be applied individually or globally on the input portsSupports LPCM 2CH, Dolby® Digital 2~5.1CH and DTS 2~5.1CHHDMI inputs support ‘Standard’ and ‘Apple®’ HDCP modesSupports MUTE function of Video and/or audio on each output port |
| Input | 4x HDMI |
| Output | 4x HDMI |
| 3D | Yes |
| CEC | - |
| EDID | Yes |
| HDCP | Yes |
| HD Audio | Yes |
| 4K | Yes |
| ARC | - |
| HEC | - |
| Deep Colour | Yes |
| Manufacturer | Cypress |
| Brand. | Cypress |
| Interface | HDMI |
| SKU No | WES_CDPS-U4H4HSA_1 |
