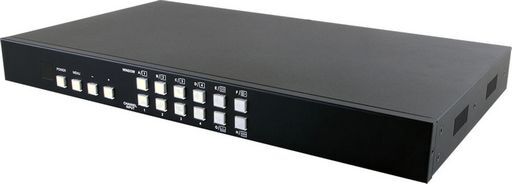

.4×1 HDMI QUAD SCREEN TO SINGLE MONITOR 1080P - CYPRESS
CYPRESS
SKU code: WES_CDPS-41SQ_1
This is a .4×1 HDMI QUAD SCREEN TO SINGLE MONITOR 1080P - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | .4×1 HDMI QUAD SCREEN TO SINGLE MONITOR 1080P - CYPRESS |
Notes | CYPRESS The CDPS-41SQ is an advanced HDMI switch with integrated Picture-in-Picture (PIP) technology that can be easily configured and controlled. It also supports Fade-In/Fade-Out, Chroma key, Mirror and Rotation (90˚ left/right and 180˚ up or down) functions. It allows 4 different sources to be selected and arranged on a single display (for quad or single view). Seamless switching between channels and windows. Supports video resolutions up to 1080p and audio up to 8CH/192kHz. Preset hot keys, IR and RS-232 / Telnet support allows centralised PC control and switching.Integrate 4 HDMI sources to a single display or video wall systemSeamless switching between channels and windowsSupports individual channel size and position adjustmentsZoom, shrink and overlay the source channelsSupports Fade-In/Fade-Out, Chromakey, Mirror and Rotation (90˚ left/right and 180˚ up or down) functionsSupports Picture-in-Picture (PIP), Picture-out-of-Picture (POP) and multi-window display8 Screen preset hot keys and 4 extra customisable screen setting favouritesSupports OSD, RS-232, Telnet, Remote and on-panel controlsSave and recall up to 4 customisable favourite screen arrangements |
Description | Multi-Picture PnP |
Input | 4x HDMI |
Output | 1x HDMI |
3D | - |
CEC | - |
EDID | - |
HDCP | Yes |
HD Audio | Yes |
4K | - |
ARC | - |
HEC | - |
Deep Colour | Yes |
Max Res. | 1080p |
Manufacturer | Cypress |
Compliance | 1.3 |
Flag | Approved |
Interface | HDMI |
SKU No | WES_CDPS-41SQ_1 |
