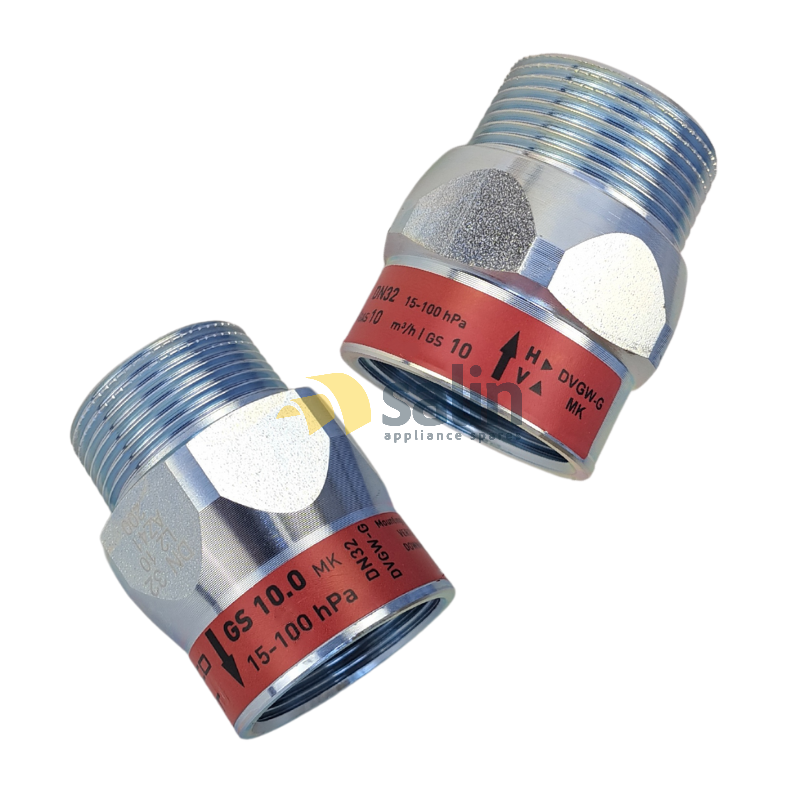

This is a replacement 32mm excess flow valve with 10 cubic meter per hour capacity.

SALIN is a leading Australian appliance spare parts distributor. We take pride in our ability to bring hard-to-find spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW.

TECHNICAL SHEET
Title32mm Excess Flow Valve with 10 Cubic Meter per Hour Capacity for LPG CARAVAN SHOP RESTUARANT
Notes

Excess Flow Valves with a nominal gas flow rate of 10m³/hr in 32mm.
Excess Flow Valves are installed into systems that use non-metal pipes, in order to make them safe against the risk of explosion due to fire. They protect the system and guarantee safety against:
– tampering by unauthorised personnel
– breakage/disconnection of hoses for gas appliances
– breakage of pipes due to natural disasters

Excess Flow Valves are maintenance free and cannot be disabled by an external action. They can handle inlet pressures from 1.5kpa to 10kpa and are designed to shut of at 1.3 to 1.45 times the total flow rate of the pipeline they are installed into.
Please note that Excess Flow Valves are Directional, and must be mounted as per their specification.
The two options include:
– Vertical Up and Horizontal
– Vertical Down

Excess Flow Valves can only be installed outside.
You can use this table below to choose the best Excess Flow Valve for your requirements.

DN Size
(mm)
Valve Nominal Flow Rate (m3/hr)
(label colour)
Natural Gas LPG
Main pipeline (MJ/hr) Branch pipeline (MJ/hr) Main pipeline (MJ/hr) Branch pipeline (MJ/hr)
15, 20 & 25 2.5 (yellow) 65 to 98.1 50.9 to 77.9 97.2 to 156.8 72.4 to 110.9
20 & 25 4 (brown) 98.2 to 157 78 to 124.6 156.9 to 250.8 111 to 177.4
25 6 (green) 158 to 235.5 124.7 to 186.9 250.9 to 376.2 177.5 to 266
32 10 (red) 235.6 to 392.5 187 to 311.5 376.3 to 627.1 267 to 443.4
40 & 50 16 (orange) 392.6 to 627.9 311.6 to 498.4 627.2 to 1003.3 443.5 to 709.4
SKU NumberGMC_000003
