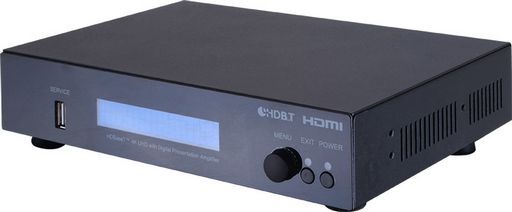

30W ZONE AMPLIFIERS - CYPRESS
30W ZONE AMPLIFIERS - CYPRESS
SKU code: WES_DCT-23HD_2
This is a 30W ZONE AMPLIFIERS - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 30W ZONE AMPLIFIERS - CYPRESS |
| Notes | The DCT-23 accepts analogue and digital stereo audio signals via RCA, 3.5mm mini-jack, optical and coaxial digital, and HDMI with an additional microphone input. As well as speaker outputs, it boasts line level output, optical and digital outputs, and HDMI outputs for wider systems integration. Suitable for use at musical events, sound presentation and sound amplification. With audio sampling rate support up to 48 kHz and I/O data rate support up to 24-bit, it provides a high quality sound reproduction.30 watts per channel Digital Stereo AmplifierSupports Digital to Analogue audio Conversion (DAC) and Analogue to Digital audio Conversion (ADC)HDMI Audio Embedding and de-embeddingSupports input sampling rates up to 96kHz and output at 48kHzDedicated XLR microphone input with independent volume controlSupports microphone sound being embedded into audio outputSimultaneous output of sound on both digital and AnalogueSupports control via IR (Remote and IR Receiver input), RS-232 or IP (Telnet)Analogue line output selectable to be either fixed or variableNote: Does not support the decoding of Dolby Digital signalsHalf-Rack width (9½”) 1RU. 215W x 172D x 46Hmm. |
| Description | Integrated Zone Amplifier with HDBaseT Support |
| Input | 1×HDMI, 1×CAT5e/6/7, 1×COAX, 1×TOSLINK, 1×3.5mm Jack, 2×RCA |
| Output | 1×HDMI, 1×CAT5e/6/7, 1×Speaker Jack |
| Manufacturer | Cypress |
| Input Audio Formats | Compressed 2~5.1CH, LPCM 2CH, Analogue 2CH |
| Output Audio Formats | Compressed (Bypass), LPCM (Bypass), Analogue 2CH |
| Input Sampling Rates | 32~192kHz |
| Output Sampling Rates | 32~96kHz |
| Brand. | Cypress |
| SKU No | WES_DCT-23HD_2 |
