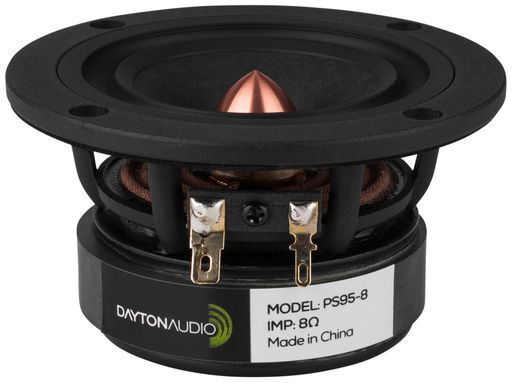

3½ POINT SOURCE FULL RANGE DRIVER - DAYTON AUDIO
110HZ - 20KHZ COPPER PHASE PLUG
SKU code: WES_PS95-8_2
This is a 3½ POINT SOURCE FULL RANGE DRIVER - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 3½ POINT SOURCE FULL RANGE DRIVER - DAYTON AUDIO |
| Notes | 110HZ - 20KHZ COPPER PHASE PLUG The PS95-8 model features a lightweight, curved-profile paper cone made of 100% natural fibers, for dynamic and articulate sound that extends from a punchy, detailed bass to the highest treble. The compact 3-1/2 size enables great sonic performance in small satellite speakers on the desktop, or in narrow needle-style tower cabinets for filling a larger room. The copper-anodised aluminium phase plug of the PS95-8 is more than just beautiful – it provides enhanced dispersion and eliminates the resonance from a conventional dust cap. And the optimised, high-strength ferrite magnet structure features a copper pole cap that reduces resolution-sapping inductance and lowers distortion.Detailed, natural sounding full-range audio performance without distortionClassy copper-anodised phase plug spreads dispersion and avoids resonanceNon-resonant cast frame enhances clarity and dynamicsLow-mass voice coil and paper cone produce detailed, non-fatiguing soundCopper pole cap in motor assembly reduces inductance and distortion |
| Description | 3½ POINT SOURCE Full Range DRIVER - DAYTON AUDIO |
| Type | Full Range |
| Size | 3.5' |
| Power | 10W |
| Coil | 20mmØ |
| Impedance | 8Ω (Re 7.1Ω) |
| Depth | 52mm |
| Sens. | 85.56dB |
| Re | 7.1Ω |
| Qms | 7.33 |
| Qes | 0.8 |
| Qts | 0.72 |
| Vas | 0.94L |
| Sd | 28.3cm² |
| Cms | 0.79mm/N |
| Fs | 119.8Hz |
| Mms | 2.2g |
| Zn | 8Ω |
| Le | 0.63mH |
| Diam. | 98mmØ |
| Manufacturer | Dayton Audio |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 0-50 Watt |
| Series | Full Range |
| Hole | 77mmØ |
| QTY | 1 |
| Prms | 10W |
| Inch | 3.5 |
| Price Type | each |
| SKU No | WES_PS95-8_2 |
