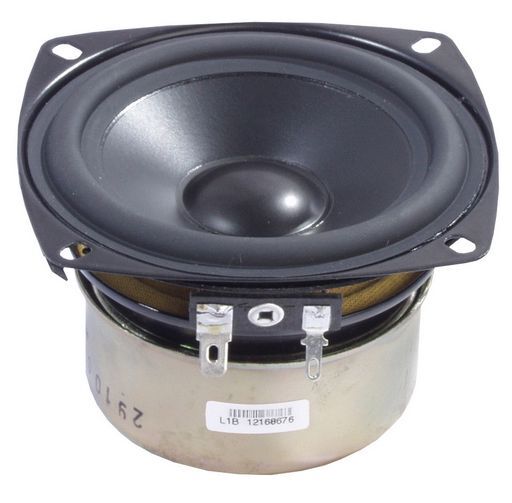

3½ HF/S MID-WOOFER - DAICHI
3½ HF/S MID-WOOFER - DAICHI
SKU code: WES_HFS89-15-8_1
This is a 3½ HF/S MID-WOOFER - DAICHI of brand Daichi.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 3½ HF/S MID-WOOFER - DAICHI |
| Notes | Paper pulp. Poly doped cone. Large exertion design 88dB! Rubber surround. All black. Steel stamped frame square. Magnetically shielded. Excellent 100Hz to 12KHz+High performance and beautiful sounding drivers from Daichi. Sturdy build quality in a compact package for today’s demanding audio requirements. Excellent solution for repair or design of high grade, yet space efficient audio with home theatre or music in compact installations.STAMPED STEEL FRAMEPAPER PULP DOPED CONERUBBER ROLL SURROUNDMAGNETICALLY SHIELDED*ADVANCED ACOUSTICS |
| Description | 3½' HF/S MID-WOOFER - DAICHI |
| Size | 3.5' |
| Price Type | each |
| Power | 8Wrms/15Wmax |
| Freq. | 100Hz - 12KHz |
| QTY | 1 |
| Impedance | 8Ω (Re 6.4Ω) |
| Mag. | 67mmØ |
| Sens. | 88dB |
| Re | 6.4Ω |
| Fo | 107Hz |
| Qms | 4.93 |
| Qes | 1.962 |
| Qts | 1.403 |
| Vas | 1.17L |
| R | 8Ω (6.4Ω dc) |
| Pnom | 8 Watts |
| Pmax | 15W |
| SPL | 88dB |
| Fs | 107Hz |
| Manufacturer | Daichi |
| Dimensions | 93mm² |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 0-50 Watt |
| Inch | 3.5 |
| Mount | 105mm |
| Depth | 55mm |
| Hole | 88mmØ |
| Prms | 8W |
| Zn | 8Ω |
| Diam. | 90mmØ |
| Brand. | Daichi |
| Series | HiFi |
| Type | Mid-Woofer |
| Materials | Paper Dope |
| SKU No | WES_HFS89-15-8_1 |
