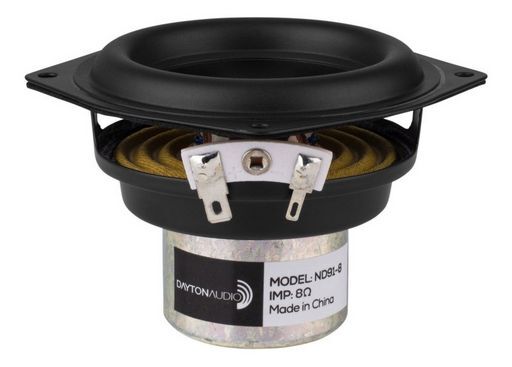

3½” ALUMINIUM CONE FULL RANGE DRIVER
DAYTON AUDIO
SKU code: WES_ND91-8_1
This is a 3½” ALUMINIUM CONE FULL RANGE DRIVER of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 3½” ALUMINIUM CONE FULL RANGE DRIVER |
| Notes | DAYTON AUDIO Dayton Audio's ND91 aluminium cone full-range drivers are designed to deliver high output with low distortion. By using a voice coil diameter of 25mm and adding a copper alloy shorting ring, these drivers feature even lower distortion and deliver better bass impact and dynamic range—with peak Xmax up to 25 mm! This high-BL version further exploits the low distortion characteristics of the Neo-Balanced motor's optimized magnetic field, making the ND91 drivers an excellent choice for full-range point-source speaker enclosures, as well as extremely accurate, high resolution line arrays.Low distortion, full-range 65 Hz to 17 kHz performanceRubber-edged black anodised aluminium alloy coneLarge excursion capability — 4.6 mm Xmax, 25 mm peakSelf-shielded Neo-Balanced motor structure with shorting ring1 4-layer underhung voice coil with polyimide formerGreat for line arrays and micro monitors |
| Description | 3½ ALUMINIUM CONE Full Range DRIVER - DAYTON AUDIO |
| Type | Full Range |
| Size | 3.5' |
| Power | 30W |
| Coil | 25mmØ |
| Impedance | 8Ω (Re 7.8Ω) |
| Depth | 64mm |
| Sens. | 82.1dB |
| Re | 7.8Ω |
| Qms | 4.29 |
| Qes | 0.53 |
| Qts | 0.47 |
| Vas | 1.53L |
| Sd | 30.4cm² |
| Cms | 1.05mm/N |
| Fs | 70.7Hz |
| Mms | 4.8g |
| Zn | 8Ω |
| Le | 1.05mm/N |
| Diam. | 89mmØ |
| Manufacturer | Dayton Audio |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 0-50 Watt |
| Hole | 85mmØ |
| QTY | 1 |
| Inch | 3.5 |
| Prms | 30W |
| Price Type | each |
| Series | ND Series |
| SKU No | WES_ND91-8_1 |
