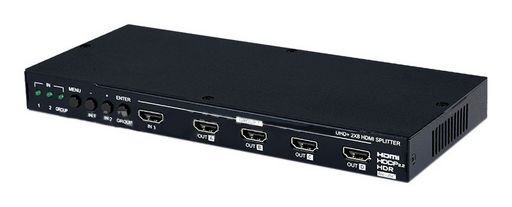

2x8 HDMI SWITCHING SPLITTER 4K60 - CYPRESS
18GBPS BANDWIDTH 4K60 WITH PER-OUTPUT DOWN-SCALING
SKU code: WES_CPLUS-V8PT_1
This is a 2x8 HDMI SWITCHING SPLITTER 4K60 - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 2x8 HDMI SWITCHING SPLITTER 4K60 - CYPRESS |
| Notes | 18GBPS BANDWIDTH 4K60 WITH PER-OUTPUT DOWN-SCALING CPLUS-V8PT 4K UHD switching splitter with HDCP 2.2 is an advanced solution providing high performance audio and video support including HDR and other features defined by the HDMI 2.0a specification. 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be passed along to the 8 outputs. Pass-through of multiple digital audio formats such as LPCM 7.1, Bitstream and advanced HD Bitstream with audio sampling rates up to 192kHz are also supported. An independent HDCP management engine for each output ensures stable HDCP performance. Per-output, selectable, 4K to 1080p down-scaling/colour space conversion (4:4:4 to 4:2:0) This splitter also includes a special Group Mode which allows the unit to function as two independent 1×4 splitters. When Group Mode is enabled, each of the 2 HDMI inputs are routed to their own discrete set of 4 outputs. Controllable via front-panel buttons with OSD and RS-232.HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatibleIndividual HDCP2.2 engine increases system stabilitySupports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video signals8 output HDMI splitter with 2 selectable inputs and automatic input switching supportSpecial “Group Mode” allows the unit to function as two independent 1×4 splitters in a single boxSupports current 10-bit and 12-bit HDR (High Dynamic Range) formatsSupports pass-through of LPCM 7.1, Bitstream and advanced HD Bitstream audio formatsPer-output, selectable, 4K to 1080p down-scaling/colour space conversion (4:4:4 to 4:2:0)Independent HDCP management engine for each output ensures stable performanceSupports eight internal EDIDs, eight external EDIDs copied from connected devices, and two user provided EDIDsSupport for the CEC active source command to periodically reset input selection on CEC-compatible connected displaysControllable via front-panel buttons with OSD and RS-232 |
| Description | 4K UHD HDR 2×8 HDMI Switching Splitter with Group Mode |
| Size | 240x103x24mm |
| Input | 2x HDMI |
| Output | 8x HDMI |
| Cable Length | 5m (4K) |
| Compliance | HDMI 2.0a UHD+ 18Gbps |
| 3D | Yes |
| CEC | Yes |
| EDID | Yes |
| Max Res. | 4K 60Hz (4:4:4) |
| Chassis. | Metal |
| HDCP | Yes |
| HD Audio | Yes |
| 4K | Yes |
| Bandwidth | 18Gbps |
| Manufacturer | Cypress |
| SKU No | WES_CPLUS-V8PT_1 |
