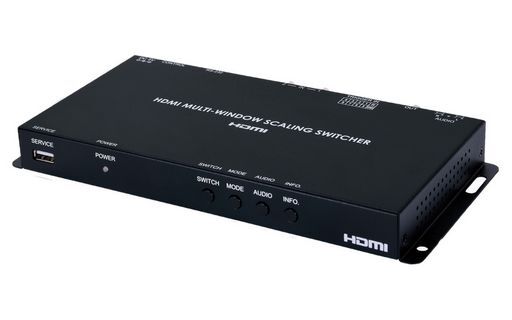

This is a 2x1 HDMI DUAL SCREEN TO SINGLE MONITOR 1080P - CYPRESS of brand Cypress.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 2x1 HDMI DUAL SCREEN TO SINGLE MONITOR 1080P - CYPRESS
Notes FULL, PICTURE-IN-PICTURE OR SIDE-BY-SIDE This 2x1 HDMI multiviewer is capable of scaling up to 2 sources and displaying both simultaneously on a single HDMI output within their own windows. This is the ideal solution for monitoring multiple sources simultaneously for use in control rooms, or for flexible display presentations in conference rooms or classrooms. Both inputs support resolutions up to 1920×1200@60Hz and LPCM audio with up to 7.1 channels at 192kHz.The multi-window output is sent to a single HDMI output at scaled resolutions up to 1920×1200@60Hz along with the selected audio source. The HDMI output supports up to LPCM 7.1 digital audio while the analog audio output supports up to LPCM 2.0. Each of the 2 HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of dual-window modes including Picture-in-Picture, Side-by-Side, or freely positioned (with layer priority control).Each window can also be mirrored, flipped, swapped, or frozen (with live audio). Chroma keying and a custom uploadable logo/graphic are also supported.By using an optional Windows PC application, the user can use their PC to generate images or text to be overlaid on top of a live HDMI input in real time. This unit can be controlled easily by use of the front panel controls (with OSD) as well as by WebGUI, Telnet, RS-232, IR, and 8 direct trigger inputs.HDMI & HDCP 1.3 compliant2 HDMI inputs and 1 HDMI outputInputs support HD resolutions up to 4K@30Hz (4:4:4, 8-bit)Output supports HD resolutions up to 1080p@60HzSupports audio pass-through of LPCM 2.0/5.1/7.1 sources via HDMIBalanced analog stereo audio extraction support via 5-pin terminal block (LPCM 2.0 only)Supports PiP (Picture-in-Picture), Side-by-Side, and free positioning window modesEasy individual window size, position and layer priority adjustmentSupports per-window mirror, flip, and image freeze (w/ live audio) functionalityChroma key supportUploadable logo supportSupport for the Windows PC “Widget Overlay” software to simplify the process of generating text or graphics to use with keying/overlay. (Optional)8 Trigger inputs for easy remote control of the unit with optional keypadSupports front panel buttons (with OSD), WebGUI, Telnet, RS-232, IR, and Trigger controls
Description2×1 HDMI Multiviewer
Input2x HDMI
Output1x HDMI + Audio
3D-
CEC-
Chassis.Metal
Compliance1.3
EDIDYes
HDCPYes
InterfaceHDMI
Max Res.1080p
ManufacturerCypress
ItemScreen Splitter
FeatureHDMI
SKU NoWES_CLUX-2HPIP_2



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_CLUX-2HPIP_2
Brand Cypress
