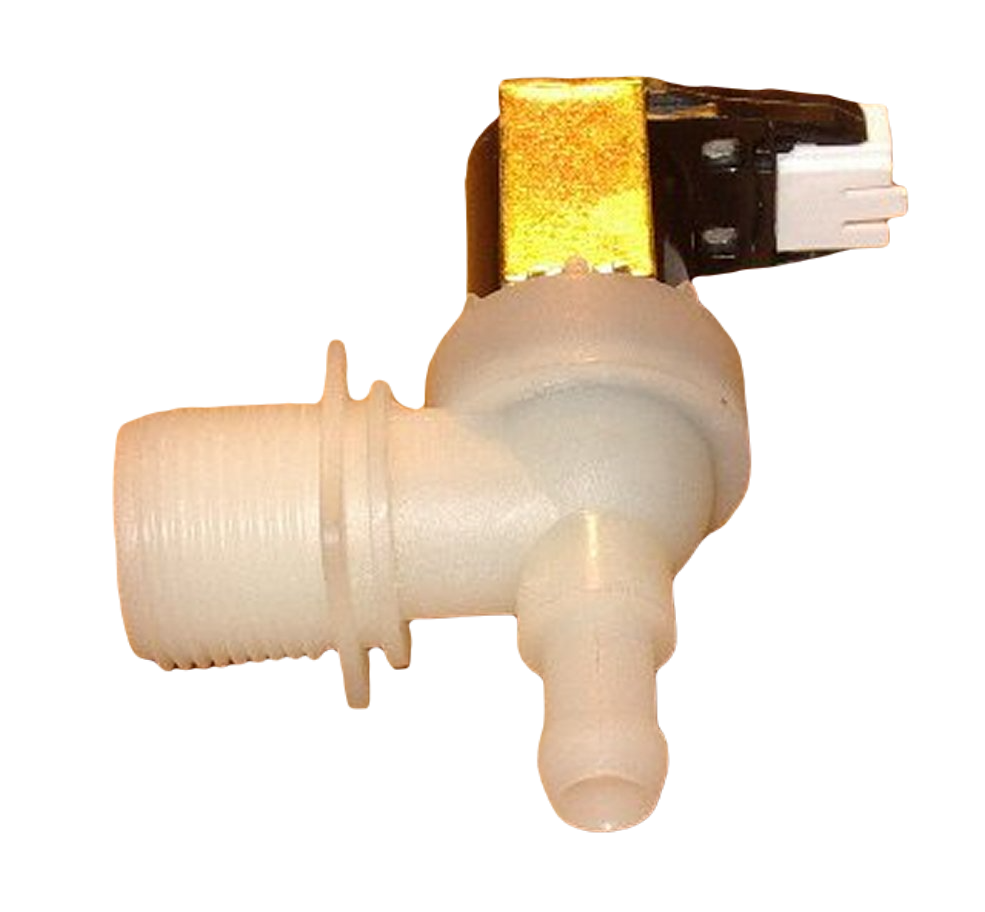

This is a replacement 24Volt Compatible Inlet Valve. It is suitable for replacing spare parts with FP420148S part number for Fisher & Paykel Washing Machines.

SALIN is a leading Australian appliance spare parts distributor specializing in FISHER & PAYKEL applicances. We take pride in our ability to bring hard-to-find FISHER & PAYKEL spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our FISHER & PAYKEL range is genuine.

TECHNICAL SHEET
Part NoFP420148S
NotesFisher & Paykel 24Volt Non-Genuine Proportional Cold Single Water Inlet Solenoid Valve.Part No. FP420148S, replaces 420148P, 426560, 420238P, FP420148P, FP426560, FP420238P. Can also be used in place of 420147P, FP420147POutlet suits 10mm hose. Inlet is 3/4' BSP standard tap thread (actual thread diameter 1').This non-genuine solenoid valve fits many late model Fisher & Paykel washing machines. Used on Phase 5 GW509, GW609, GW709, GWC09, GWL09, GWM09 & MW059, LW059, AW095 machines. Also used on Intuitive & Ecosmart models, IW509, IW609, IW709, GWL10, IW710, IW810, IWC09, IWL10, IWM10 & Phase 6 series 11 & 12 models GW511, GW611, GW711, GW512, GW612, GW712, GWC11, GWM11, GWL11, GWC12, GWM12, GWL12, IW511, IW711, IW811, IW512, IW712 (some), IW812 (some), IWM11, IWL11, IWM12, IWL12. It has a small 2pin connector rather than the 2 spade terminals used on older valves.The latest IW & GW series ending in 12 machines use a dual inlet valve listed here.Earlier valves had the connector pushed vertically up into the socket. The new replacement has the connector horizontal
Title24Volt Compatible Inlet Valve For Fisher & Paykel GW611 Washing Machines
CategoryAppliance Spares > Washer & Dryer > Washing Machines
Replacement Item24Volt Compatible Inlet Valve
Compatible Brands✔ Fisher & Paykel
Replacing Parts✔ 420148P
✔ 426560
✔ 420238P
✔ FP420148P
✔ FP426560
✔ FP420238P
✔ 420147P
✔ FP420147P
Suitable Models✔  Fisher & Paykel GW509
✔  Fisher & Paykel GW609
✔  Fisher & Paykel GW709
✔  Fisher & Paykel GWC09
✔  Fisher & Paykel GWL09
✔  Fisher & Paykel GWM09
✔  Fisher & Paykel MW059
✔  Fisher & Paykel LW059
✔  Fisher & Paykel AW095
✔  Fisher & Paykel IW509
✔  Fisher & Paykel IW609
✔  Fisher & Paykel IW709
✔  Fisher & Paykel GWL10
✔  Fisher & Paykel IW710
✔  Fisher & Paykel IW810
✔  Fisher & Paykel IWC09
✔  Fisher & Paykel IWL10
✔  Fisher & Paykel IWM10
✔  Fisher & Paykel GW511
✔  Fisher & Paykel GW611
✔  Fisher & Paykel GW711
✔  Fisher & Paykel GW512
✔  Fisher & Paykel GW612
✔  Fisher & Paykel GW712
✔  Fisher & Paykel GWC11
✔  Fisher & Paykel GWM11
✔  Fisher & Paykel GWL11
✔  Fisher & Paykel GWC12
✔  Fisher & Paykel GWM12
✔  Fisher & Paykel GWL12
✔  Fisher & Paykel IW511
✔  Fisher & Paykel IW711
✔  Fisher & Paykel IW811
✔  Fisher & Paykel IW512
✔  Fisher & Paykel IW712
✔  Fisher & Paykel IW812
✔  Fisher & Paykel IWM11
✔  Fisher & Paykel IWL11
✔  Fisher & Paykel IWM12
✔  Fisher & Paykel IWL12
SKU NumberFIT_0001588_001_00020
