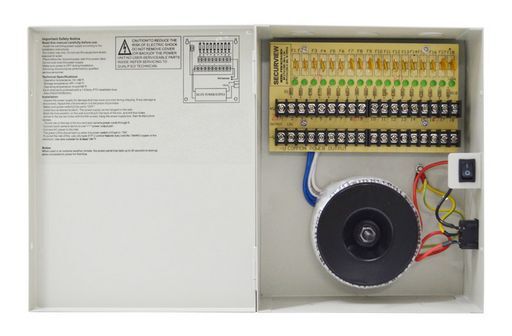

This is a 24VAC 18 CHANNEL 10A HEAVY DUTY TRANSFORMER - CCTV POWER SUPPLY of brand Securview.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 24VAC 18 CHANNEL 10A HEAVY DUTY TRANSFORMER - CCTV POWER SUPPLY
Notes Designed specifically for use in the CCTV industry, this 24VAC heavy duty transformer / power supply can be used to provide power to 18 CCTV cameras (cameras rated at less than 500mA). Thermal Cut-off Protection (TCO): Each output has an independent PTC fuse and LED indicator. If a problem occurs, only the independent output will be affected. Short circuit protection: If a short circuit condition occurs, the independent PTC fuse will open the circuit. When the short circuit is removed, the fuse will automatically close. Secure Metal Case: The secured metal housing provides protection against intrusion and allows for professional-looking cable management.18 individual fused outputsShort circuit protectionHigh voltage protectionOver current protectionInput Voltage: AC220~240VOutput Voltage: AC 24V +/-5%Total Output Current : 10A / 240WEfficient compact design Dimensions(mm): 255x210x95mmIndoor use only
Description24V 18CH
Size210x95x255mm
Output24Vdc 500mA ea.
Channel18CH
ManufacturerSecurview
ItemPower
SKU NoWES_PS24VAC10A18CH_2



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_PS24VAC10A18CH_2
Brand Securview
