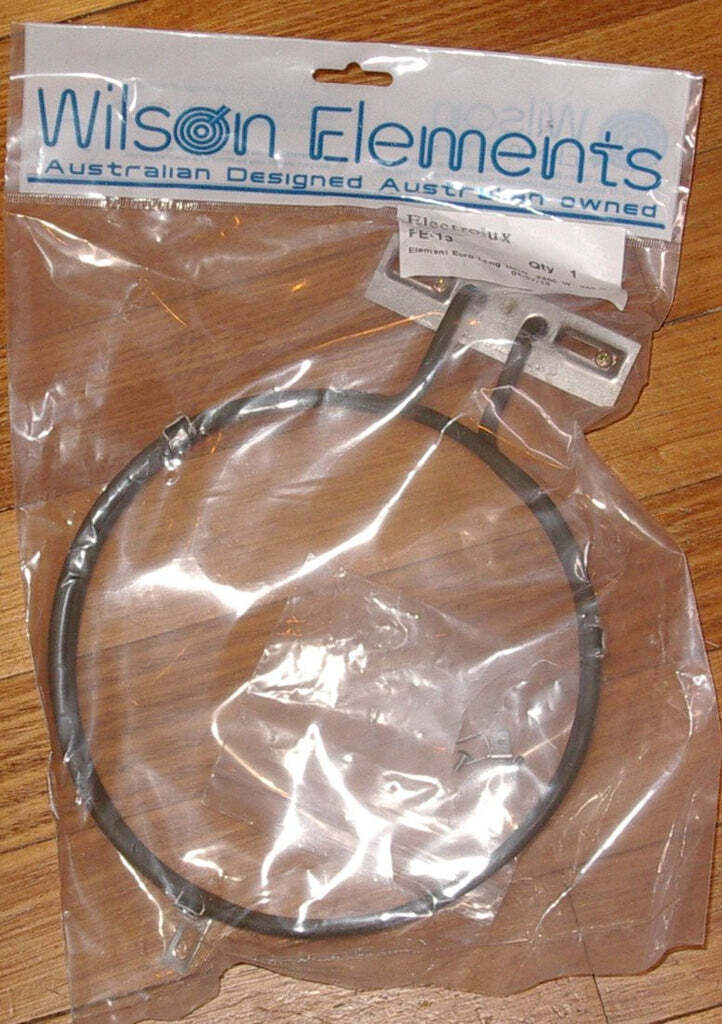

This is a replacement 2150Watt Fan Oven Element. It is suitable for replacing spare parts with FE-13| G379201 part number for Kleenmaid Ovens and Cooktops.

SALIN is a leading Australian appliance spare parts distributor specializing in KLEENMAID applicances. We take pride in our ability to bring hard-to-find KLEENMAID spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our KLEENMAID range is genuine.

TECHNICAL SHEET
Part NoFE-13| G379201
NotesKleenmaid, Brandt, Gorenje 2150Watt Fan Forced Oven Element.Part No. FE-13, G379201, GN379201. Replaces 77X2277, XEFE01B.2150Watt, 240Volt. Element dimensions - 19cm diameter. Overall depth 32mm from front to bracket. Bracket hole centres are 55mm from the edge of the element loops.Adjustable mounting holes &/or studs 53mm - 80mm apart on a fixed bracket. Fitted with dual 6.4mm spade terminals on each element end and a 6.4mm earth terminal in the centre of the bracket. The connecting bracket at the opposite side of the element is slotted 15mm to allow a range of fitting positions.This part may be packaged as G379201 or FE-13. They are exactly the same part.Appropriate for many newer Kleenmaid models including TO50, TO60, TO70, TO200, TO201, TO300, TO400, TO401, TO500, TO600, TO601, TO700, TO701, FEC500, FEC605, FES500 and FES605, TO200X, TO300X, TO500X.Also fits some Brandt & De Deitrich models including:-BOV30102, 3010, BP411WU11, 411WU1, 411XU11, 411XU1, CD8457E11, 8457E1, CE9000E11, 9000E12, 9000E1, 9005E11, 9005E1, DMC404E1/1, 404E1, DMP401E1/1, 401E1, 402E1/1, 402E1, 404, 404E1/1, 404E1, 501E1/1, 501E1, 502E1/1, 502E1, 504E1/1, 504E1, DOC310XE11, 310XE1, 505XE11, 505XE1, DOD328BU11, 328BU1, 328XU11, 328XU1, 338BU11, 338BU1, 338WU11, 338WU1, 338XU11, 338XU1, DOE405XE11, 405XE1, DOP350XE11, FA4441E11, 4441E1, 4441E21, 4441E2, 4441E31, 4441E3, 5447E11, 5447E1, 5447E21, 5447E2, 5447E31, 5447E3, 5447S11, 5447S1, 5447S31, 5447S3, 6449E11, 6449E12, 6449E1, FAP24B1U1, 24B1U, 24C1U1, 24C1U, FB4422U1, 4448E11, 4448E12, 4448E1, 4827E33, 4827E34, 4827E35, 4827E3, FE222BS12, 222BS1, 222WS12, 222WS1, 222ZS12, 222ZS1, 411WU11, 411WU1, FE411WU11, 411WU1, FE411XU11, 411XU1, FE422BS11, 422BS1, FE422WS11, 422WS1, FE422XS11, 422XS1, 7447E31, 7447E3, 7447E41, 7447E42, 7447E4, FM4422U1, 4422U21, 4422U2, 4441E11, 4441E1, 4441E2, 4441E31, 4441E3, 4441E41, 4441E4, 4441J1, 4445E11, 4445E12, 4445E1, 4445J1/1, 4445J1, 4447E11, 4447E1, 4447E21, 4447E2, 4447E31, 4447E3, 4447E41, 4447E4, 4447U11, 4447U1, 4447U2, 4447U31, 4447U3, 4448E11, 4448E12, 4448E1, 4448E21, 4448E2, 4822U21, 4822U2, 4827U11, 4827U1, 4827U21, 4827U2, 4942D11, 4942D12, 4942D1, 4942D21, 4942D2, 4942D31, 4942D3, 6448D11, 6448D12, 6448D1, 6448D21, 6448D2, FP225BS11, 225BS12, 225BS1, FP225BS11, 225BS1, FP225BS12, 225BS1, FP225BS13, 225BS1, 225WS12, 225WS13, 225WS1, FP225WS11, 225WS1, FP225WS12, 225WS1, FP225WS13, 225WS1, 225XS13, 225XS1, FP225XS11, 225XS1, FP225XS12, 225XS1, FP225XS13, 225XS1, 229BS12, 229BS13, 229BS1, FP229BS11, 229BS1, FP229BS12, 229BS1, FP229BS13, 229BS1, 229WS12, 229WS13, 229WS1, FP229WS11, 229WS1, FP229WS12, 229WS1, FP229WS13, 229WS1, 229XS12, 229XS13, 229XS1, FP229XS11, 229XS1, FP229XS12, 229XS1, FP229XS13, 229XS1, FW4422U1, 4427E11, 4427E1, 4427E21, 4427E2, 4427E31, 4427E33, 4427E3, 4441E11, 4441E1, 4441E21, 4441E2, 4441E31, 4441E3, 4445E11, 4445E12, 4445E1, 4445J1/1, 4445J1, 4447E11, 4447E1, 4447E21, 4447E2, 4447E31, 4447E3, 4448E11, 4448E12, 4448E1, 4449E11, 4449E12, 4449E1, 4821E1, 4821E21, 4821E22, 4821E2, 4821E31, 4821E3, 4822U1, 4827E33, 4827E34, 4827E35, 4827E3, 5447E11, 5447E1, 5447E21, 5447E2, 5447E31, 5447E3, 5447S11, 5447S1, 5447S31, 5447S3, 5449E11, 5449E12, 5449E1, 5847E1, 5847E21, 5847E22, 5847E2, 5847E31, 5847E32, 5847E3, 5867U3/2, 5867U3/3, 5867U3, 6449E11, 6449E12, 6449E1, FX4422U1, 4427E11, 4427E1, 4427E21, 4427E2, 4427E31, 4427E33, 4427E3, 4441E11, 4441E1, 4441E21, 4441E2, 4441E31, 4441E3, 4441J2, 4445E11, 4445E12, 4445E1, 4445J1/1, 4445J1, 4447E11, 4447E1, 4447E21, 4447E2, 4447E31, 4447E3, 4448E11, 4448E12, 4448E1, 4449E11, 4449E12, 4449E1, 4821E1, 4821E21, 4821E22, 4821E2, 4821E31, 4821E3, 4822U1, 4827E33, 4827E34, 4827E35, 4827E3, 5447E11, 5447E1, 5447E21, 5447E2, 5447E31, 5447E3, 5447S11, 5447S1, 5447S31, 5447S3, 5449E11, 5449E12, 5449E1, 5847E1, 5847E21, 5847E22, 5847E2, 5847E31, 5847E32, 5847E3, 5867U3/3, 5867U3, 6449E11, 6449E12, 6449E1, UMC401E1/1, 401E1, 401E2/1, 401E2, 402E1/1, 402E1, 404E1/1, 404E1, UME411E1/1, 411E1, 414E2/1, 414E2, UMP302E11, 302E1, 401E1/1, 401E1, 402E1/1, 402E1, 404E1/1, 404E1, 411E1/1, 411E1, 412E1/1, 412E1, 501E1/1, 501E1, 502E1/1, 502E1, 504E1/1, 504E1, 505E1/1, 505E1, 506E1/1, 506E1, 512E, 602E1/1, 602E1, 604E1/1, 604E1, 615E1/1, 615E1, 616E1/1, 616E1,CD1000J1, FAQ25B1U , FAQ25W1U.Because of the adjustable mounting arrangement it may also fit a large number of other brands and models
Title2150Watt Fan Oven Element For Kleenmaid UMP302E11 Ovens and Cooktops
CategoryAppliance Spares > Kitchen Appliances > Ovens & Cooktops
Replacement Item2150Watt Fan Oven Element
Compatible Brands✔ Kleenmaid
✔ Gorenje
Replacing Parts✔ 77X2277
✔ XEFE01B
Suitable Models✔  Kleenmaid TO50
✔  Kleenmaid TO60
✔  Kleenmaid TO70
✔  Kleenmaid TO200
✔  Kleenmaid TO201
✔  Kleenmaid TO300
✔  Kleenmaid TO400
✔  Kleenmaid TO401
✔  Kleenmaid TO500
✔  Kleenmaid TO600
✔  Kleenmaid TO601
✔  Kleenmaid TO700
✔  Kleenmaid TO701
✔  Kleenmaid FEC500
✔  Kleenmaid FEC605
✔  Kleenmaid FES500 and FES605
✔  Kleenmaid TO200X
✔  Kleenmaid TO300X
✔  Kleenmaid TO500X
✔  Kleenmaid BOV30102
✔  Kleenmaid 3010
✔  Kleenmaid BP411WU11
✔  Kleenmaid 411WU1
✔  Kleenmaid 411XU11
✔  Kleenmaid 411XU1
✔  Kleenmaid CD8457E11
✔  Kleenmaid 8457E1
✔  Kleenmaid CE9000E11
✔  Kleenmaid 9000E12
✔  Kleenmaid 9000E1
✔  Kleenmaid 9005E11
✔  Kleenmaid 9005E1
✔  Kleenmaid DMC404E1/1
✔  Kleenmaid 404E1
✔  Kleenmaid DMP401E1/1
✔  Kleenmaid 401E1
✔  Kleenmaid 402E1/1
✔  Kleenmaid 402E1
✔  Kleenmaid 404
✔  Kleenmaid 404E1/1
✔  Kleenmaid 404E1
✔  Kleenmaid 501E1/1
✔  Kleenmaid 501E1
✔  Kleenmaid 502E1/1
✔  Kleenmaid 502E1
✔  Kleenmaid 504E1/1
✔  Kleenmaid 504E1
✔  Kleenmaid DOC310XE11
✔  Kleenmaid 310XE1
✔  Kleenmaid 505XE11
SKU NumberFIT_0002379_001_00372
