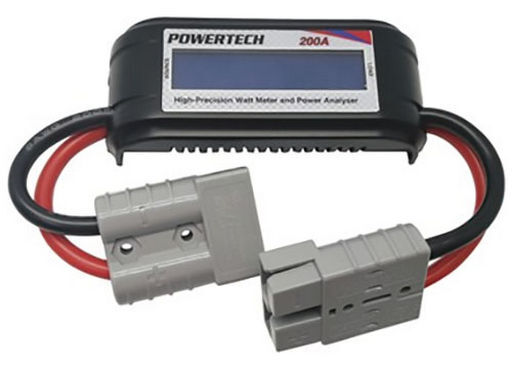

This is a 200A DC POWER METER WITH ANDERSON CONNECTORS of brand Universal.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 200A DC POWER METER WITH ANDERSON CONNECTORS
Notes The AND6192 power meter is an All-in-one power meter, volt meter, amp-hour meter, ammeter and energy meter. It’s designed for systems less than 60V and currents up to 200A (Peak). This tester includes 2x Anderson SB50 connectors on both source and load end which makes it an easy fit into most high current DC set ups. It can check charge going to a battery from battery charger or alternator, solar panel output, charge controller output, health and performance of batteries, evaluate charging efficiency or measure power and energy consumption of any load device with a battery. The Watt Meter only requires a tiny 7mA draw to operate making little difference to power production during usage. Ideal for cars, boats, caravans, off-grid installations, Wind, solar installations, and so much more.2x Anderson SB type 50 Amp connectors75A continuous / 200A PeakUp to 60VDC compatibilityAccurate measurement of amps, volts, watts, amp-hours, watt-hours, peak amps, minimum volts (sag) and peak wattsCable: 8AWGDisplay: 16 x 2 backlit LCD DisplayReads: 6V - 60V (0V - 60V with optional auxiliary battery).Measures: Current - 0-200A @ 0.01A ResolutionVoltage - 0-60VDC @ 0.01V ResolutionPower - 0-6554W @ 0.1W ResolutionWatt Hours - 0-650kWh @ 0.1Wh ResolutionAmpere Hours - 0-6554Ah @ 0.01Ah Resolution
Cable8AWG
Connectors2x Anderson SB50
Current75A continuous / 200A Peak
LCD160x20mm
VoltageUp to 60Vdc
SKU NoWES_AND6192_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_AND6192_1
Brand Anderson Power Products
