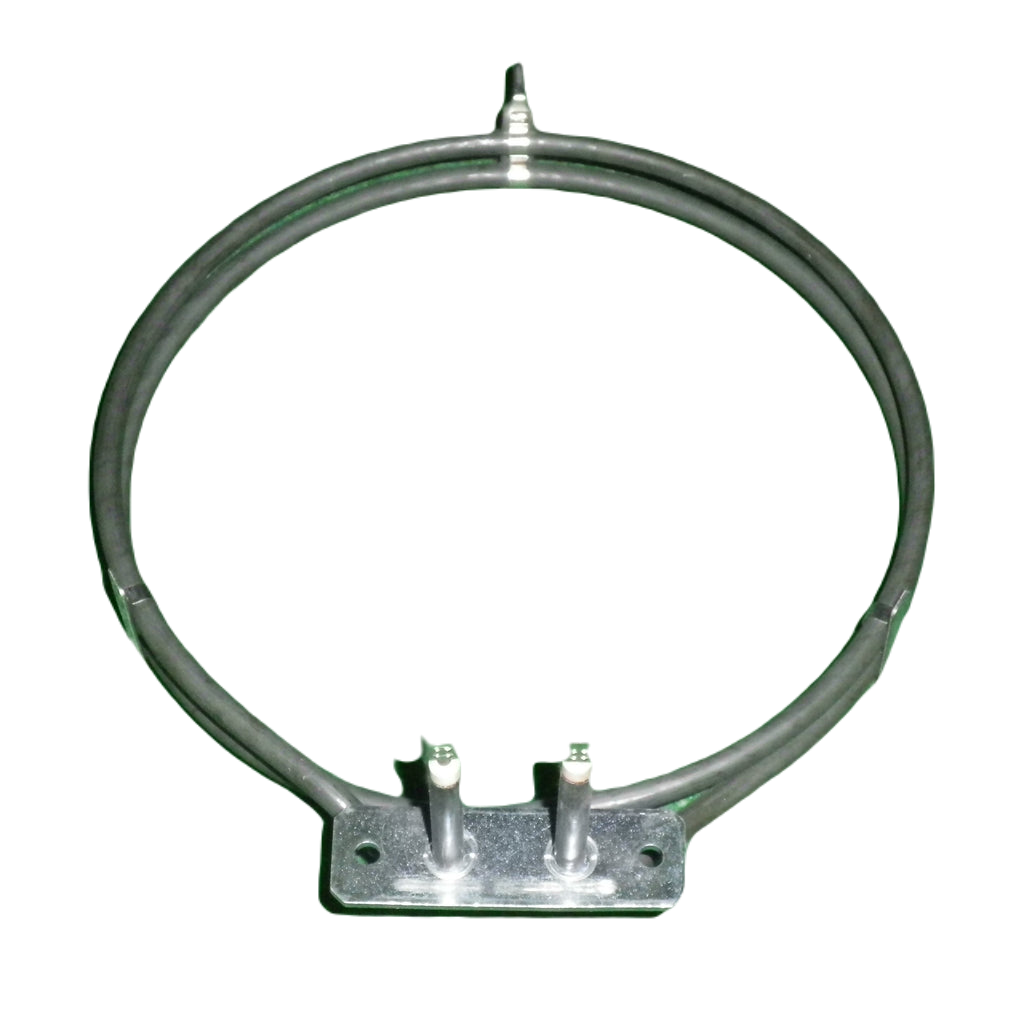

This is a replacement 2000Watt Fan Oven Element. It is suitable for replacing spare parts with 76X3719 part number for Kleenmaid Ovens and Cooktops.

SALIN is a leading Australian appliance spare parts distributor specializing in KLEENMAID applicances. We take pride in our ability to bring hard-to-find KLEENMAID spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our KLEENMAID range is genuine.

TECHNICAL SHEET
Part No76X3719
NotesGenuine Kleenmaid, Brandt 2000Watt Fan Forced Oven Element.Part No. 76X3719, 082621216, 5085R396IRCA.2000Watt, 230Volt. Element dimensions - 19cm diameter. Overall depth 38mm from front to bracket. Bracket hole centres are 15mm from the edge of the element loops. Double 6.4mm spade terminals on each end of the element point straight back. Element ends extend 55mm behind the bracket including the spade terminals. Studs on mounting plate are 56mm apart.Appropriate for many newer Kleenmaid models including TO54W, TO54X, TO55W, TO55X, TO56W, TO56X.Also fits some Belling, Blomberg, Brandt, Candy, Carrera, Cookers, Diplomat, Domo, Hygena, Homark, Nardi, Ocean, Proline models including:-01-600201, 01-600206, 01-601201, 01-700206A, 01-700301, 01-700306A, 01-700401, 01-700406, 01-700501, 01-7600A, 01-801101A, 02-600206, 02-601201, 02-700206A, 02-700301, 02-700401, 02-700406, 02-700501, 02-7600A, 02-801101A, 05-703105A, 05-703205, 07-206106, 07-206201, 07-700401, 08-801201, 09-601201, 09-801201, 10-801201, 11-801201, 12-801201, 13-801201, 15-601201, 15-801201, 16-801201, 17-801201, 20-601201, 01-700501, 02-700501, 789SS, XOU163 BL, XOU163 BR, XOU163 GR, XOU163 WH, XOU164 BL, XOU164 BR, XOU164 GR, XOU164 WH, XOU181 ST, XOU182 SS, XOU491 WH, XOU789 SS, FAC24W1N, FAC24X1N, FAT23H1U, FAT24B1G, FAT24B1U, FAT24T1G, FAT24T1U, FAT24TIU, FAT24W1G, FAT24W1U, FAT24X1G, FAT24X1U, FBT21T1G, FBT21W1G, FBT21X1G, FBT24B1G, FBT24T1G, FBT24W1G, FBT24X1G, FD292BU1, FD292WU1, FD292XU1, FLC24B1U, FLC24C1U, FLC24W1U, FLC24X1U, FLT24M1U, FLT24T1U, FLT24W1U, FLT24X1U.If you are unsure of the suitability of this part, please contact us prior to purchasing with your brand and model number
Title2000Watt Fan Oven Element For Kleenmaid 02-700406 Ovens and Cooktops
CategoryAppliance Spares > Kitchen Appliances > Ovens & Cooktops
Replacement Item2000Watt Fan Oven Element
Compatible Brands✔ Kleenmaid
✔ Gorenje
Suitable Models✔  Kleenmaid TO54W
✔  Kleenmaid TO54X
✔  Kleenmaid TO55W
✔  Kleenmaid TO55X
✔  Kleenmaid TO56W
✔  Kleenmaid TO56X
✔  Kleenmaid 01-600201
✔  Kleenmaid 01-600206
✔  Kleenmaid 01-601201
✔  Kleenmaid 01-700206A
✔  Kleenmaid 01-700301
✔  Kleenmaid 01-700306A
✔  Kleenmaid 01-700401
✔  Kleenmaid 01-700406
✔  Kleenmaid 01-700501
✔  Kleenmaid 01-7600A
✔  Kleenmaid 01-801101A
✔  Kleenmaid 02-600206
✔  Kleenmaid 02-601201
✔  Kleenmaid 02-700206A
✔  Kleenmaid 02-700301
✔  Kleenmaid 02-700401
✔  Kleenmaid 02-700406
✔  Kleenmaid 02-700501
✔  Kleenmaid 02-7600A
✔  Kleenmaid 02-801101A
✔  Kleenmaid 05-703105A
✔  Kleenmaid 05-703205
✔  Kleenmaid 07-206106
✔  Kleenmaid 07-206201
✔  Kleenmaid 07-700401
✔  Kleenmaid 08-801201
✔  Kleenmaid 09-601201
✔  Kleenmaid 09-801201
✔  Kleenmaid 10-801201
✔  Kleenmaid 11-801201
✔  Kleenmaid 12-801201
✔  Kleenmaid 13-801201
✔  Kleenmaid 15-601201
✔  Kleenmaid 15-801201
✔  Kleenmaid 16-801201
✔  Kleenmaid 17-801201
✔  Kleenmaid 20-601201
✔  Kleenmaid 01-700501
✔  Kleenmaid 02-700501
✔  Kleenmaid 789SS
✔  Kleenmaid XOU163 BL
✔  Kleenmaid XOU163 BR
✔  Kleenmaid XOU163 GR
✔  Kleenmaid XOU163 WH
SKU NumberFIT_0002362_001_00023
