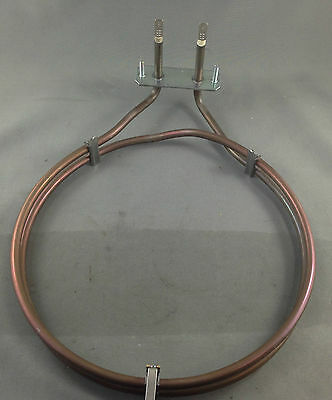

This is a fan oven element for Electrolux, Westinghouse, Simpson, LUX, Chef, Kleenmaid, Smeg, Technika, Omega. It is suitable for Electrolux, Westinghouse, Simpson, LUX, Chef, Kleenmaid, Smeg, Technika, Omega - Microwaves.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 2 x Kleenmaid Oven Fan Forced Element T0300 T0300W T0300X TO300 TO300W TO300X
Notes 2 X OVEN FAN FORCED ELEMENT 2250W 230V
MULTI FIT
REPLACES PART NUMBERS: 77x2277 GN379201 379201
2100Watt, 240Volt. Element dimensions - 19.5cm diameter. Overall depth 30mm from front to bracket. Distance from centre of mounting bracket to centre of mounting slot at top of element is 25cm.
Mounting holes 56mm apart on a fixed bracket. Fitted with dual 6.4mm spade terminals on each end. Length of element ends including spade terminals from the mounting bracket 40mm.
May also be used to replace 2027 468 R IRCA, 2027468IRCA, 372 IRCA 12 99 RB65, 372IRCA1299RB65, 2141 52GR IRCA, Stokes 10252, Technika 945540.
TECHNIKA MODEL TO:
emic800x to60w to60b to60x to50w to50b to50x-series 1 to70w to70x series1 to70w series1 to70w series2 to70x series3 to700a to700a1 to700x to700x1 to700x2 to701x to701x1 to701x2 to701a
gn258967 fec500x fec500w fec605x fec605w fes605w to200w to200x to300w to300x to400a to400w to400x to500a to500x to600a to600x fes500w to201x to201w to601x to401x
BLANCO OVEN MODELS :
BODE26X1 BODE26X2 BOSE166W BOSE166X2 BOSE168X BOSE69PX1


Bracket 70x20mm, centre of bracket holes 55mm apart, centre of spades 55mm apart (short earth spade in between), coil diameter 195mm, distance from end of bracket to securing hole on coil 240mm. Rating is 230v/2400W
This element can replaces most European fan forced oven elements:
SMEG OMEGA BLANCO TECHNIKA AEG
Replaces the following:
VX110000 203174 806890355 806890397
Blanco model examples: BSO600, BSO629, BSO630, BSO632, BSO635
Suitable BrandElectrolux, Westinghouse, Simpson, LUX, Chef, Kleenmaid, Smeg, Technika, Omega
Suitable Applicance ClassMicrowave
Replacement Item Type Fan Oven Element
Suits toT0300 T0300W T0300X TO300 TO300W TO300X
BrandSIMPSON CHEF WESTINGHOUSE CHEF ELECTROLUX
MPNT0300 T0300W T0300X TO300 TO300W TO300X
ModelT0300 T0300W T0300X TO300 TO300W TO300X
Power SourceElectric
Suitable ForConvection/Steam Oven Combination,Convection Microwave Oven,Conventional Oven/Range,Grill Microwave Oven,Convection Oven/Range,Cooktop
ColourBlack
Compatible BrandSMEG OMEGA,TECHNIKA SMEG
Capacity31-55 L
InstallationBuilt-In/Integrated
TypeFan Oven Element
UPCDoes not apply
SKU NoEBY_273309680662
