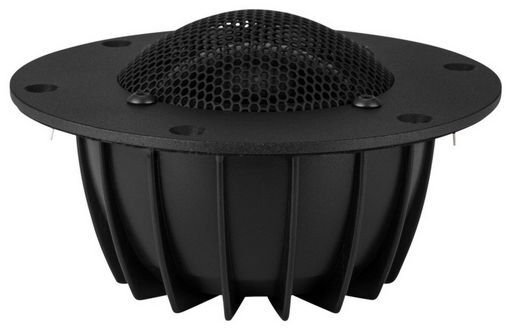

2 REFERENCE SERIES MIDRANGE DOME - DAYTON AUDIO
2 REFERENCE SERIES MIDRANGE DOME - DAYTON AUDIO
SKU code: WES_RS52AN-8_1
This is a 2 REFERENCE SERIES MIDRANGE DOME - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | 2 REFERENCE SERIES MIDRANGE DOME - DAYTON AUDIO |
Notes | The Dayton Reference Series dome midrange delivers excellent off-axis response and midrange performance. Its black anodized 2 diaphragm is extremely linear throughout the midrange and lower treble, allowing it to provide a seamless transition to tweeters. The superior dispersion characteristics will eliminate suckouts and other problems that can occur in typical two-way designs with large woofers. High quality construction includes a cast aluminium faceplate, metal grill, vented former, and copper clad pole piece. Great for use with other members of the Reference Series, but will also work well with any high-performance driver.Large damped rear chamber for low resonance point2 Aluminium diaphragm for good clarity and dispersionNeodymium magnet minimizes stray magnetic fieldCopper clad motor reduces distortion for transparent sound |
Description | 2' Dome Midrange 8 Ohm |
Series | Reference Series |
Type | Midrange Dome |
Size | 2' |
Power | 60W |
Coil | 52mmØ |
Impedance | 8Ω (Re 6.0Ω) |
Depth | 57mm |
Sens. | 89.4dB |
Re | 6Ω |
Qms | 3.16 |
Qes | 1.18 |
Qts | 0.86 |
Vas | 0.13L |
Sd | 26.4cm² |
Cms | 0.13mm/N |
Fs | 341Hz |
Mms | 1.7g |
Zn | 8Ω |
Le | 0.13mH |
Diam. | 130mmØ |
Manufacturer | Dayton Audio |
Impedance (Ohm) | 8 ohm |
Power (RMS) | 51-100 Watt |
QTY | 1 |
Hole | 100mmØ |
Inch | 2 |
Prms | 60W |
Price Type | each |
SKU No | WES_RS52AN-8_1 |
