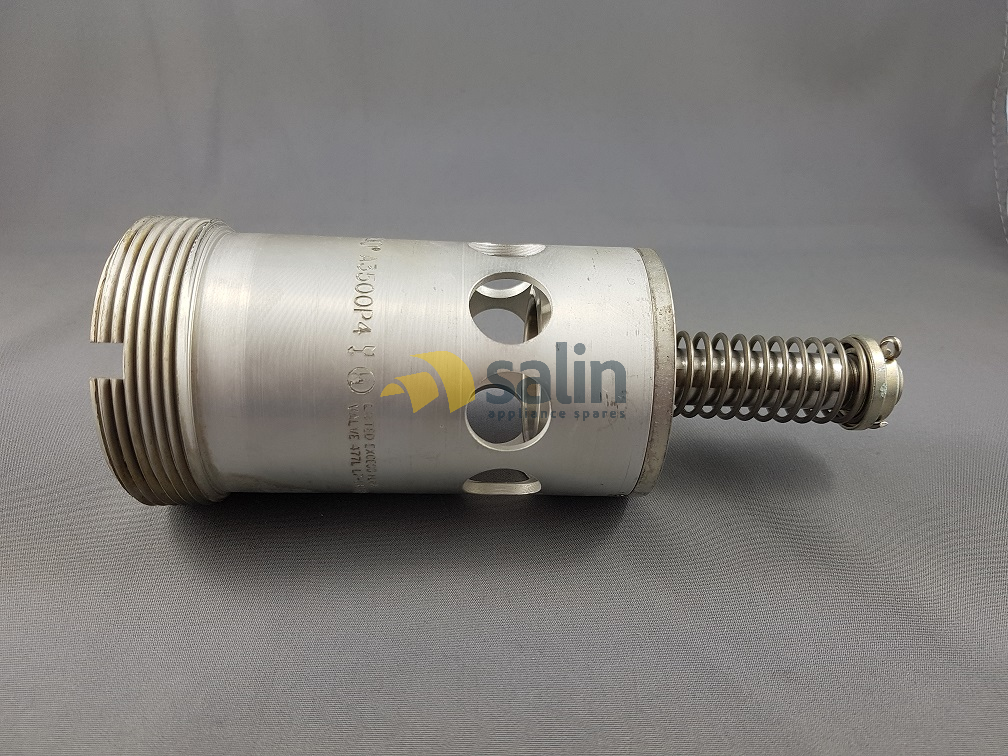

This is a replacement 2″ mnpt excess flow valve.

SALIN is a leading Australian appliance spare parts distributor specializing in REGO PRODUCTS appliances. We take pride in our ability to bring hard-to-find REGO PRODUCTS spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our REGO PRODUCTS range is genuine.

TECHNICAL SHEET
Title2″ MNPT Excess Flow Valve for LPG CARAVAN SHOP RESTUARANT
BrandRegO Products
Notes

EXCESS FLOW VALVE 2″ MNPT

Application

Designed for mounting in flanged tank connections with internal threads in the bottom of a container. They may be used in filling, withdrawal or vapor equalizing application. They provide high flow capacity with low pressure drop to minimize pump inlet line cavitation. If a riser pipe to the vapor space is used with these excess flow valves, the minimum inside diameter of the riser pipe must be at least two times the valve thread size in order not to restrict flow to the side inlet ports. Flange mounted excess flow valves are readily accessible for servicing and completely enclosed and protected in event of fire. Because there is no direct connection between external piping and the valve, stresses imposed on piping will not affect the excess flow valve.

Features
  • Precision machined.
  • Generous flow channels provide low pressure drop minimizing cavitation in pump suction lines.
  • Cotter pin prevents loss of spring retainer due to vibration in service.
  • Stainless steel spring provides consistent closing flow and long service life.
Materials

Body………………………………………………………. Cadmium Plated Steel
Seat Disc………………………………………………… Cadmium Plated Steel
Stem…………………………………………………………………. Stainless Steel
Spring……………………………………………………………….. Stainless Steel
Guide……………………………………………………… Cadmium Plated Steel

SKU NumberGMC_000126
