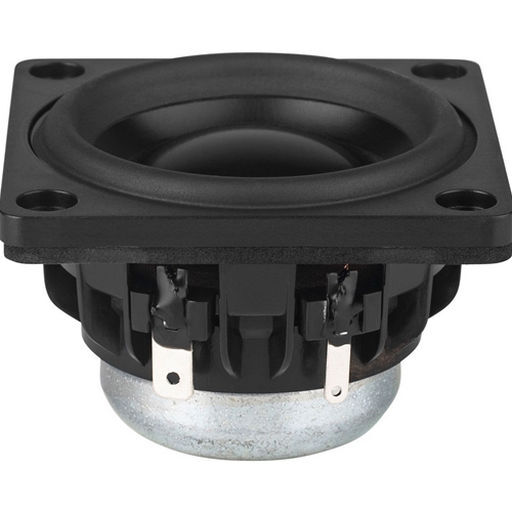

This is a 2 DUAL MAGNET FULL RANGE DRIVER of brand Dayton Audio.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 2 DUAL MAGNET FULL RANGE DRIVER
Notes ALUMINIUM CONE Designed for the highest performance while delivering maximum value, the no compromise design of the DMA58-4 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1 voice coil is wound on an extensively vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion. Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8 radius, meaning that for flush mounting you can get a perfect fit using any standard Also available for 8Ω (DMA58-8).Providing high efficiency with low distortion, Dayton Audios DMA58-8 2 aluminum cone full-range is an ideal driver for use in many of todays modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA58-8 is the perfect full-range for the job. Designed for the highest performance while delivering maximum value, the no compromise design of the DMA58-8 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1 voice coil is wound on an extensively vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion. Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8 radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4 straight cut router bit.Excellent high frequency response for true full-range applicationsDual neodymium motor to create a symmetrical magnetic field for superb controlLarge copper cap lowers distortion while improving high frequency responseVented aluminium voice coil former with exceptional heat dissipation for high power handlingExclusive 8-spoke open frame design provides extensive venting and minimal reflectionDIY friendly, oversized mounting flange makes installation simple
DescriptionDMA58-4 2' Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm
ManufacturerDayton Audio
Zn4Ω
Re3.55Ω
Fs165.5 Hz
Power15Wrms
Power (RMS)0-50 Watt
Sens.86.2 dB
Qms2.4
Qes0.56
Qts0.46
Vas0.14L
Impedance4Ω (Re 3.55Ω)
Impedance (Ohm)4 ohm
Hole49.8mmØ
Depth31.8mm
Diam.56x56mm
Le0.2 mH
Cms0.45 mm/N
QTY1
Sd14.5 cm²
Prms15W
Inch2
Size2'
Xmax2.0 mm
Mms2.1 g
Vd2.9 cm³
Coil25.4 mm
Bl3.7 Tm
Pmax30 watts
UPC848791005206
ColourBlack
Brand.Dayton Audio
Price Typeeach
TypeFull-Range
SeriesFull-Range
SKU NoWES_DMA58-4_1
