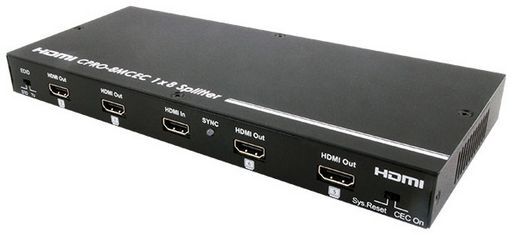

1x8 HDMI 1.4 SPLITTER WITH CEC, ARC & HEC FUNCTIONS - CYPRESS
HDMI ETHERNET CHANNEL (HEC) - 3D - CONSUMER ELECTRONICS
SKU code: WES_CPRO-8MCEC_2
This is a 1x8 HDMI 1.4 SPLITTER WITH CEC, ARC & HEC FUNCTIONS - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 1x8 HDMI 1.4 SPLITTER WITH CEC, ARC & HEC FUNCTIONS - CYPRESS |
| Notes | HDMI ETHERNET CHANNEL (HEC) - 3D - CONSUMER ELECTRONICS CONTROL (CEC) - AUDIO RETURN CHANNEL (ARC) This is a high performance one input and eight outputs HDMI Splitter supports 3D and individual CEC control functions. One out of the eight outputs port supports Audio Return Channel (ARC) and HDMI Ethernet Channel (HEC) follow by HDMI v1.4 Specification. The ARC provides an S/PDIF link from HDMI™ sink and output through ARC port to AVR to get true audio from the sink. The HEC feature adds a connection to the HDMI link that is capable of carrying the same data as a full duplex, 100Mbps Ethernet connection. Using an HDMI with HEAC cable allowing for convenient integration of Digital Televisions (DTVs) into the end user’s home network system. Supports video resolution at up to UXGA or 1080p. Suitable for showroom display, education demo, professional audio display and other commercial usages.Support multiplexed HDMI 1-input and 8-output.Output port 4 supports Ethernet Channel (HEC) and Audio Return Channel (ARC) follow by HDMI v1.4 specification.HDMI 1.4 support. Audio Return Channel (ARC) 3D, CEC1.4 HDMI Ethernet Channel (HEC), enabling high-speed networking.HDCP repeater support.Deep Colour support 36/30/24-bit, 1080p@60Hz.EDID can selected standard or TV EDID.Support System reset or CEC on switch.Audio support: HDMI 1.4 compatible Dedicated, flexible audio input/output port. Dolby®. True HD, DTS-HD Master Audio. Full audio input and output support. |
| Description | HDMI V1.4 1x8 Splitter w/Individual CEC |
| Input | 1x HDMI |
| Output | HDMI x8 / Ethernet x1 / ARC x1 |
| Interface | HDMI |
| Compliance | V1.4 |
| 3D | Yes |
| CEC | Yes |
| EDID | Yes |
| Cascade | - |
| Max Res. | 1080p |
| Chassis. | Metal |
| HDCP | Yes |
| IR | - |
| PoE | - |
| Ethernet | - |
| 4K | - |
| RS-232 | - |
| Page | 15 |
| Manufacturer | Cypress |
| HD Audio | Yes |
| SKU No | WES_CPRO-8MCEC_2 |
