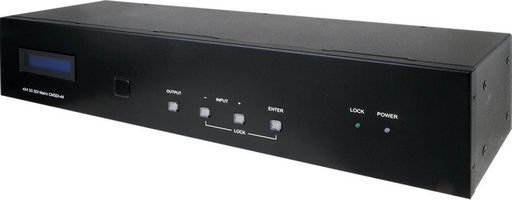

.16×4 / 12×4 / 8×4 / 4×4 3G-SDI MATRIX
.16×4 / 12×4 / 8×4 / 4×4 3G-SDI MATRIX
SKU code: WES_CMSDI-44_1
This is a .16×4 / 12×4 / 8×4 / 4×4 3G-SDI MATRIX of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | .16×4 / 12×4 / 8×4 / 4×4 3G-SDI MATRIX |
| Notes | The 3G-SDI Matrix series allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on SDI displays while ensuring high bit rates of 2.970 Gbps to give you fast signal transmission without signal loss. For professionals, this means that it is now easier to switch multiple 3G-SDI signals and split display of them on up to four SDI-equipped displays simultaneously. Additionally, these units can be controlled with the supplied IR remote, the front panel keys or RS-232 control functions.3G-SDI input sources can be selected and split or switched to four 3G-SDI displays simultaneouslyOperation at 2.970 Gbps, 2.970/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps and 270 MbpsSupports SMPTE 425M (Level A and Level B), SMPTE424M, SMPTE 292M, SMPTE 259M-CConnect using other units to extend your signal over long distancesSignal is equalized and re-clockedSupports signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals |
| Description | The 3G-SDI Matrix allows up to four SD-SDI, HD-SDI and 3G-SDI signals to be displayed on SDI displays while ensuring high bit-rates of 2.970 Gbps to give you fast signal transmission without signal loss. For professionals, this means that it is now easier to switch multiple 3G-SDI signals on up to four SDI-equipped displays simultaneously. Additionally, these units can be controlled with the supplied IR remote, the front panel keys or RS-232 control functions. |
| Input | 4x SDI |
| Output | 4x SDI |
| 3D | - |
| CEC | - |
| EDID | - |
| HDCP | - |
| HD Audio | - |
| 4K | - |
| ARC | - |
| HEC | - |
| Deep Colour | - |
| Brand. | Cypress |
| Manufacturer | Cypress |
| Interface | SDI |
| SKU No | WES_CMSDI-44_1 |
