12 DESIGNER SERIES WOOFER - DAYTON AUDIO
12 DESIGNER SERIES WOOFER - DAYTON AUDIO
SKU code: WES_DS315-8_1
This is a 12 DESIGNER SERIES WOOFER - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 12 DESIGNER SERIES WOOFER - DAYTON AUDIO |

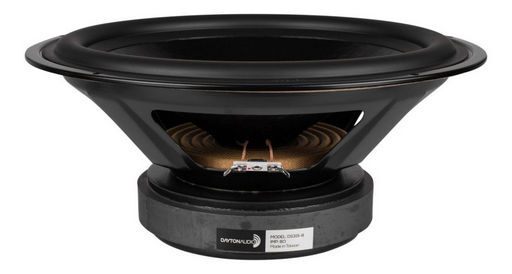

| Notes | The DS315-8 Designer Series Woofer was developed specifically with the speaker designer in mind. It is an affordable speaker that puts performance first. Careful engineering ensures the speaker is capable of handling full rated power at the lowest possible frequencies - without exceeding Xmax. This speaker combines useful performance parameters with elegant style. Carefully optimised to provide superb audio reproduction. Great looks, high efficiency, and clean bass.Cosmetic frame with low profile lip, designed for front mounting - no countersinking required!Coated paper cone, half roll rubber surround for durability and accurate reproductionOptimised to yield a low 3 dB down point and high potential output in a reasonably sized cabinetSmooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossoversVented pole piece for minimised power compression and maximised reliabilityGenerous Xmax capability encourages use of moderate bass boost to tailor the response |
| Description | 12' Designer Series Woofer Speaker 8 Ohm |
| Type | Woofer |
| Size | 12' |
| Power | 120W |
| Coil | 49.5mmØ |
| Impedance | 8Ω (Re 6.1Ω) |
| Depth | 130mm |
| Sens. | 91dB |
| Re | 6.1Ω |
| Qms | 1.79 |
| Qes | 0.37 |
| Qts | 0.31 |
| Vas | 159L |
| Sd | 506.7cm² |
| Cms | 0.44mm/N |
| Fs | 24.2Hz |
| Mms | 97.4g |
| Zn | 8Ω |
| Le | 1.43mH |
| Diam. | 314mmØ |
| Manufacturer | Dayton Audio |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 101-150 Watt |
| Inch | 12 |
| Series | Designer Series |
| QTY | 1 |
| Prms | 120W |
| Hole | 272mmØ |
| Price Type | each |
| SKU No | WES_DS315-8_1 |
