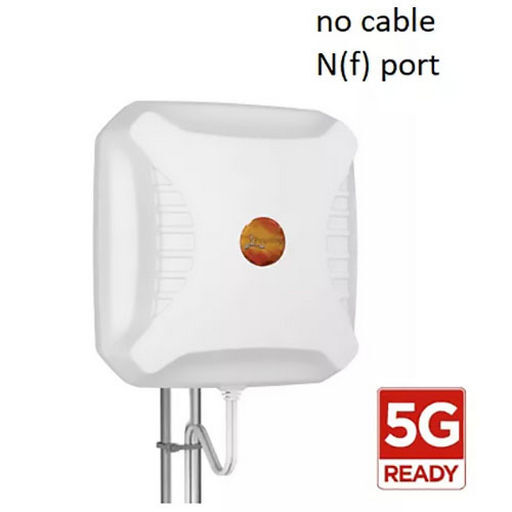

11dBi 2×2 MIMO 5G ANTENNA - 698-3800MHz - NO CABLE
11dBi 2×2 MIMO 5G ANTENNA - 698-3800MHz - NO CABLE
SKU code: WES_ANT-PY-00005_1
This is a 11dBi 2×2 MIMO 5G ANTENNA - 698-3800MHz - NO CABLE of brand Poynting.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | 11dBi 2×2 MIMO 5G ANTENNA - 698-3800MHz - NO CABLE |
Notes | The ANT-PY-00005 is a Cross Polarised (XPOL), cellular band, 2x2 MIMO antenna which includes the new 3400 – 3800MHz bands making it suitable for 2G, 3G, 4G and 5G. It makes use of Artificial Magnetic Conductors (AMC) and a new registered/patent-pending radiator configuration, and has yielded exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well-controlled, further adding to the performance of the antenna. IP65 ingress protection to suit outdoor applications.New advanced metamaterial technologyExceptional performance over the main 4G/5G bandsHigh Gain for the antenna sizeWideband 2×2 MIMO 4G/5G antennaBackwards compatible 2G/3G/4G/LTE antenna (5G Ready)Two cross polarised antennas in one enclosure for optimal LTE performanceIP65 weather/dust and vandal-resistant enclosure. |
Connector | N-Female |
Dimensions | 290x265x155mm |
Freq. | 698-960 / 1710-2700 / 3400-3800 MHz |
Gain | 11dBi )max) |
Mounting | Wall and pole mount |
Manufacturer | Poynting |
SKU No | WES_ANT-PY-00005_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
MPN | |
SKU | WES_ANT-PY-00005_1 |
Brand | Poynting |
