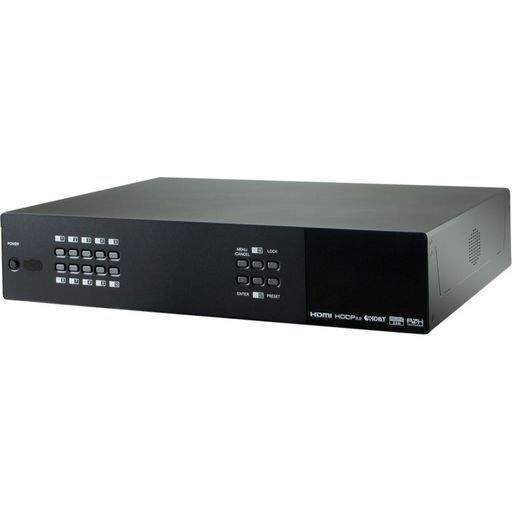

Title 10x10 HDMI / AUDIO OVER HDBaseT MATRIX 4K60 WITH OAR
Notes 10x10 HDMI / AUDIO OVER HDBaseT MATRIX 4K60 WITH OAR This 10×10 HDMI and HDBaseT Matrix supports routing and transmission of video (resolutions up to 4K@60Hz w/ HDMI 2.0 & HDCP 2.2) and audio (multi-channel digital/stereo analog) while providing flexible control via IR, RS-232, Telnet or WebGUI. As many as ten UltraHD sources may be routed to any of ten destinations, eight via single Cat.5e/6/7 cables (up to 60m at 1080p or up to 35m at 4K@30Hz) and two via HDMI 2.0 outputs. The two HDMI 2.0 outputs support transmission of 18Gbps UltraHD HDMI sources (up to 4K@60Hz, 4:4:4) from any HDMI input or they can mirror any of the HDBaseT outputs for local monitoring. 3D video is also supported when compatible sources and displays are connected.This product supports passing 7.1 channel LPCM digital audio as well as advanced bitstream and HD bitstream audio formats. Additionally, four analog audio outputs are available to provide stereo breakout audio from the associated HDBaseT output (LPCM 2.0 sources only). Beyond basic video routing, this product also incorporates an independent audio matrix with 14 audio outputs and 10 audio inputs. Offering discrete audio routing, insertion and extraction, this product makes it possible to have multiple audio zones within your installation. Additionally the matrix contains 3 independent audio mixers allowing for applications such as adding music or a voice over to existing video. This product supports the Optical Audio Return (OAR) channel feature, found on compatible HDBaseT receivers, allowing optical audio sources connected to those receivers to be sent back to the matrix unit.Internally generated test patterns (up to 18Gbps UHD resolutions) are provided to assist with setup, providing a simple way to verify matrix functionality. The Power over HDBaseT (PoH) function can power compatible receivers, providing greater flexibility in your installations. Control is via manual selection buttons, WebGUI, Telnet, RS-232 or IR remote.HDMI 2.0, HDCP 1.4 and HDCP 2.2 compliantRoutes 10 HDMI sources to 10 displays using 8 HDBaseT outputs and 2 independent or mirrored HDMI outputsHDBaseT feature support: High-Definition video and audio, 48v PoH (Power over HDBaseT) and control (Bi-directional IR & RS-232 pass through)Supported HDBaseT resolutions: VGA~WUXGA, 480i~1080p, 4K@24/25/30Hz (RGB, YUV 4:4:4 & YUV 4:2:2) & 4K@60Hz (YUV 4:2:0) dependent upon the output display’s EDID settingsSupports HDMI output resolutions up to 4K@60Hz (RGB/YUV 4:4:4)Supports automatic 4K@60Hz RGB/YUV 4:4:4 to YUV 4:2:0 conversion for HDBaseT outputs4K@30Hz signals can be transmitted up to 35m via Cat.5e/6 and up to 40m via Cat.6a/7Supports pass-through of all standard digital audio formats: LPCM 2.0/5.1/7.1, bitstream, and HD bitstreamSupports audio matrix functionality enabling full audio management of the system including HDBaseT audio selection, fully independent audio-only zones and HDMI audio embedding and de-embedding (LPCM only)Supports Digital to Analog Conversion (DAC) and Analog to Digital Conversion (ADC) for audio integrationSupports integrated audio over CAT inputs and outputs for transmission up to 300mSupports volume, treble, bass, and audio delay for lip-sync (up to 230ms) on analog audio outputs and mute on all outputsHDBaseT outputs with Optical Audio Return (OAR) supportAudio mixer functionality (three mixers in total)Advanced internal and external EDID management with 4 sets of configurable EDID settingsInternal test pattern generation for self and sink testingCapable of generating test signals up to 4K@60HzBi-directional IR support over HDBaseTSupports supplying 48 PoH (Power over HDBaseT) to compatible receivers (with use of optional 2nd power supply)Control via front panel controls, Ethernet (Telnet & WebGUI), RS-232, and IR remote2U rack mounted design Requires HDMI over HDBaseT receivers such as: CH-1529RXPL
Description10×10 HDMI/Audio over HDBaseT Matrix with Optical Audio Return and 48V power to receivers
4KYes
AVLCNo
BandwidthHDMI: 18Gbps, HDBaseT: 10.2Gbps
Cable LengthHDMI: 3M(4K), HDBaseT: 35M (4K) via Cat5e/6
Chassis.Metal
Controller9×IR Extender, 11×IR Blaster, 1x RS-232, 1x RJ45(control), 1x USB(service)
Dimensions438x316x88mm
EDIDYes
HD AudioYes
HDCPYes
Input10×HDMI, 8×RCA(stereo), 2×Coaxial(SPDIF), 2x TOSLINK, 2×Cat.5e [Bi-directional Audio]
IRYes
Max Res.4K@60Hz (4:4:4) for HDMI, 4K@60Hz (4:2:0) for HDBase-T
Output2×HDMI, 8×Cat.5e/6/7, 16x RCA(stereo), 8xRCA(extended stereo audio), 2×Cat.5e(Bi-directional Audio)
PoEPoH
ReceiverCH-1529RXPL
RS-232Yes
Size438x316x88mm
Compatible withCH-1529RXPL
ManufacturerCypress
SKU NoWES_CPLUS-1082CVAL_1
