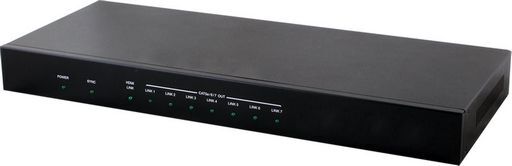

1×7 HDMI OVER HDBaseT SPLITTER 4K30 - CYPRESS
HDMI IN TO 7x HDBaseT OUT + HDMI BYPASS
SKU code: WES_CHDBT-1H7CPL_1
This is a 1×7 HDMI OVER HDBaseT SPLITTER 4K30 - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 1×7 HDMI OVER HDBaseT SPLITTER 4K30 - CYPRESS |
| Notes | HDMI IN TO 7x HDBaseT OUT + HDMI BYPASS The CHDBT-1H7CL can split and distribute a single HDMI input, and 2-way IR control to up to seven CAT5e/6/7 outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 4K @ 30Hz, 4K2K timing, 3D and multichannel digital audio formats (such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The CAT5e/6/7 outputs can be connected to CAT5e/6/7 to HDMI receivers to extend the operating distance up to 60 metres. Additionally, the CHDBT-1H7CPL supports Power over Cable (PoC) function can power compatible receivers, providing greater flexibility in installations.HDMI with 3D and 4K2K supported, HDCP and DVI compliantSimultaneous HDMI and CAT5e/6/7 outputsSupports one HDTV and seven CAT5e/6/7 outputsSupports data rate from 250Mbps up to 10.2GbpsSupports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4K2K (3840×2160@30Hz and 4096×2160@24 Hz)Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192 kHz sample rate)Supports distances up to 60 metres through CAT5e/6/7 cablesSupports selection of Standard or TV EDID settingsSupports USB service portSupports Bi-directional IR controlThe 3D signal display follow by display TV’s EDID Requires compatible HDMI over HDBaseT receivers such as: CH-506RXL, CH-513RXL, CH-514RXL |
| Description | The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input and 2-way IR control up to seven CAT5e/6/7 outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The CAT5e/6/7 outputs can be connected to CAT5e/6/7 to HDMI Receivers to extend the operating distance up to 60 metres with Power Over Cable feature. |
| Input | 1x HDMI |
| Output | 1x HDMI, 7x CAT5e/6/7 |
| IR | Yes |
| Cable Length | 60M |
| 3D | Yes |
| HDCP | Yes |
| PoE | Yes |
| Ethernet | - |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | - |
| Max Res. | 4K @ 30Hz |
| Receiver | CH-506RXL, CH-513RXL, CH-514RXL |
| Compatible with | CH-506RXL, CH-513RXL, CH-514RXL |
| Extender Cable | CAT5e/6/7 |
| Brand. | Cypress |
| Manufacturer | Cypress |
| Interface | HDMI |
| SKU No | WES_CHDBT-1H7CPL_1 |
