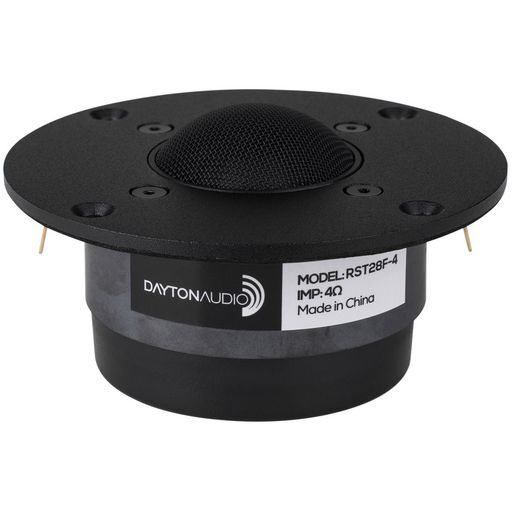

1-1/8 REFERENCE SERIES FABRIC DOME TWEETER
Standard Face Plate
SKU code: WES_RST28F-4_1
This is a 1-1/8 REFERENCE SERIES FABRIC DOME TWEETER of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 1-1/8 REFERENCE SERIES FABRIC DOME TWEETER |
| Notes | Standard Face Plate The Dayton Audio RST28F-4 silk dome Reference Series tweeter offers exceptional efficiency from 1,400 Hz to 20,000 Hz with an extremely natural and dynamic sound. This unique 1-1/8 silk dome and a state-of-the-art Ferrofluid cooled motor system employs copper shorting rings to ensure that high frequency content is reproduced as transparently as possible, assuring studio-quality performance. RST28F-4 tweeters not only match the look and features of the RS woofers and midranges but also the clean, detailed, and uncolored sound that characterizes the entire series. These are just a few of the features that allow these tweeters to outperform some the most expensive audiophile high-frequency transducers.1-1/8 silk diaphragm offers remarkable clarityExceptional efficiency at 93.5 ±3dB from 1.4 kHz to 20 kHz and a smooth frequency responseWell-designed phase bridge to balance the response in the upper octaveTuned rear chamber and high-quality Ferrofluid for excellent low-end responseLow-distortion motor system achieves a rare level of transparencyMatches the performance of even the most expensive audiophile high-frequency transducers |
| Description | 1-1/8' Reference Series Fabric Dome Tweeter 4 Ohm |
| Manufacturer | Dayton Audio |
| Le | 0.03mH |
| Qts | 0.92 |
| QTY | 1 |
| Inch | 1.125 |
| Size | 1.125' |
| Qes | 1.46 |
| Diam. | 105mmØ |
| Frequency | 1400Hz - 20KHz |
| Qms | 2.52 |
| VC | 28.5mmØ |
| Re | 3.0Ω |
| Impedance (Ohm) | 4 ohm |
| Depth | 45mm |
| Impedance | 4Ω (Re 3Ω) |
| Power (RMS) | 51-100 Watt |
| Sd | 6.6cm² |
| Fs | 710Hz |
| Hole | 73mmØ |
| Prms | 80W |
| Power | 80Wrms |
| Sens. | 93.5dB |
| Colour | Black |
| Price Type | each |
| Series | Reference Series |
| Type | Tweeter |
| SKU No | WES_RST28F-4_1 |
